Sony RDR HX750 HX950 Disassembly

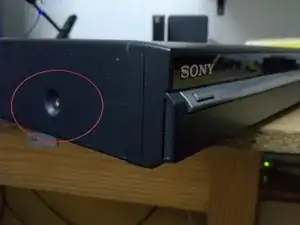

Remove the screws from the back and sides of the top cover.

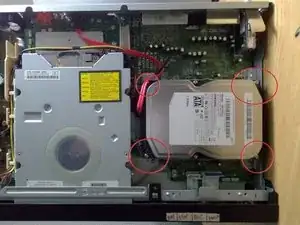

Remove the four screws that secure the hard drive mounting bracket to the bottom of the unit.

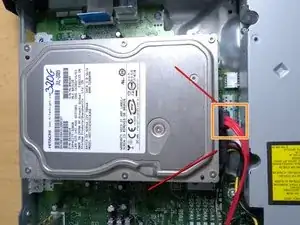

Unplug the two cables from the rear of the hard drive.

Remove the four screws from the bottom of the hard drive mounting bracket.

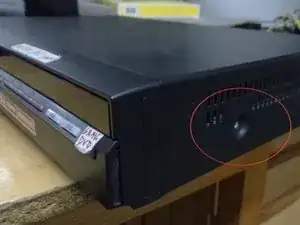

Remove the screws from the back

Remove the screws from the DVD cover

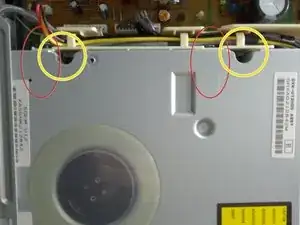

Remove the screws from the plastic cable holder

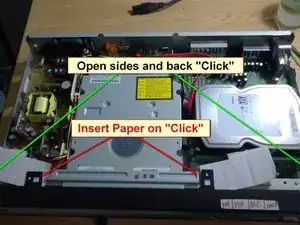

Insert the paper under each "click" to remove the front panel.

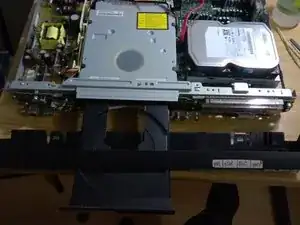

Once each "click" is loose, push the front panel gently.

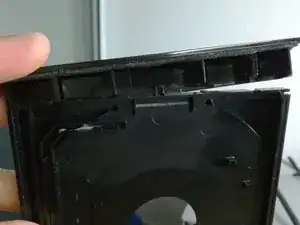

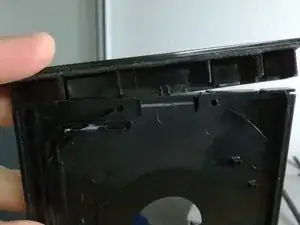

The table of the compact disk has a little plastic piece in front that goes up to come out with a "click"

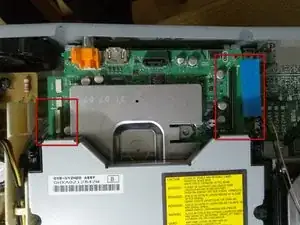

Unplug the cables show in photo.

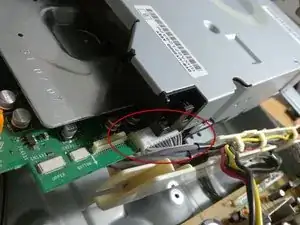

Disconnect the cable hidden on the side.

Remove the piece on the cd reader

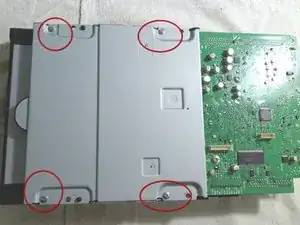

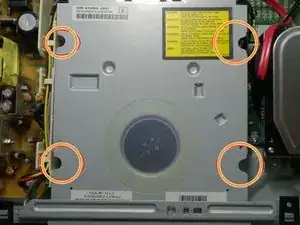

Under the DVD block, remove the screws as shown.

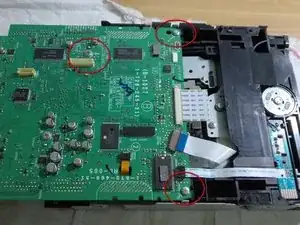

Remove the screws on the board.

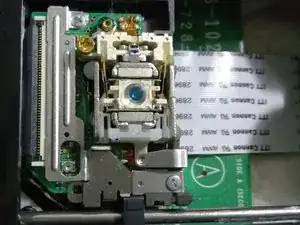

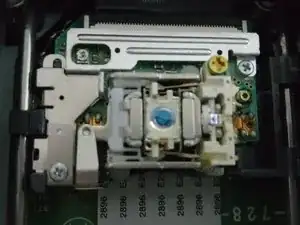

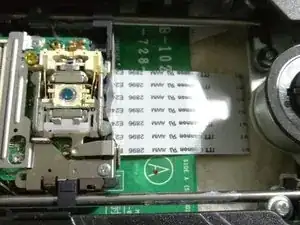

Now the laser can be accessed.
