Sony Reader Wi-Fi PRS-T3 E-Ink screen Replacement

Geschrieben von: mrdkonst

Kommentare: 18

Sony Reader Wi-Fi PRS-T3 E-Ink screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

1 - 2 Stunden

Einleitung

This article is devoted to replacement of e-Ink screen on your Sony Reader Wi-Fi PRS-T3. The main difficulty is to remove old double-sided tape by which screen holds on main body.

ED060XC5(LF)C1 screen have been used as a new part.

Werkzeuge

Essential Electronics Toolkit

Schritt 1

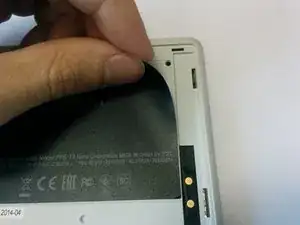

Detach the back cover from the e-reader
Remove the black sticker, uncovering three additional screws. The sticker comes loose quite easy.

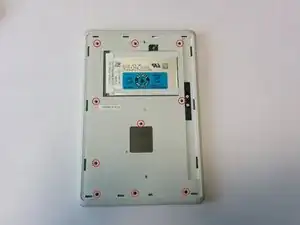

Unscrew all 10 screws (length 3.2mm).
Now take a spudger, and start opening the case at the top. There are four retaining clips at each side.

Schritt 2

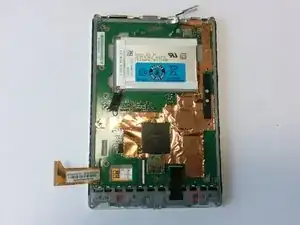

Under the cover you'll find many interesting things.

Schritt 3

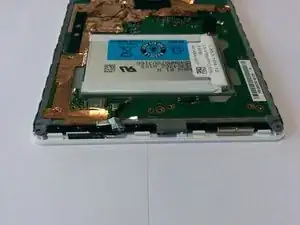

Unscrew these 5 screws (length 4.3mm) . They hold the front bezel (white or black part of the main body).
There are other screws that hold the motherboard (10×, 1.8mm) to the grey back plate. You do not need to remove them, unless you want to remove the electronics board (for example to prevent damage when cleaning the back plate in a later step).

Schritt 4

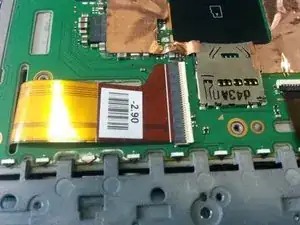

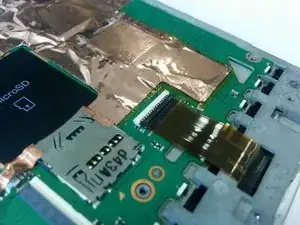

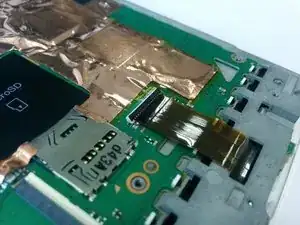

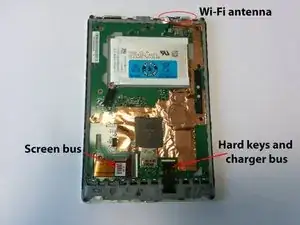

Carefully unplug buses. For the screen bus. Simple pull it from connector. For the hard keys bus . First, open the connector by hook it from below. Then it'll be easy to unplug the bus.

Schritt 6

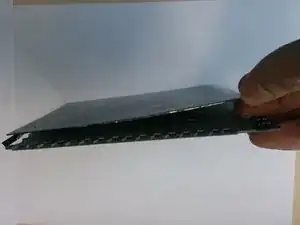

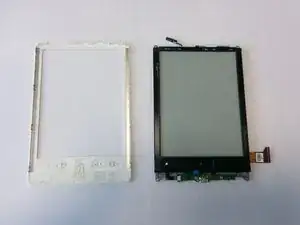

Now we need to remove a white cover. It helds by clips around the body. Please, pay attention to hooks in red ellipses on the photo. On the second photo you may see detached white cover.

Schritt 7

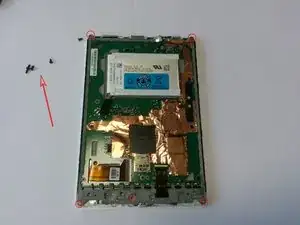

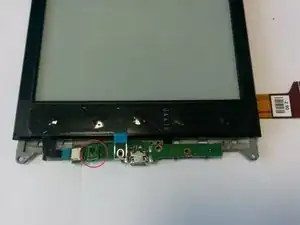

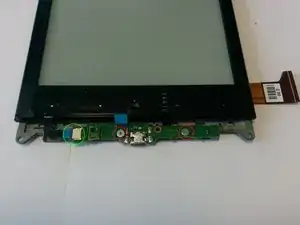

Unscrew screws marked by red cicles.
Carefully unplug a bus
Be careful, do not lose this tiny thing!

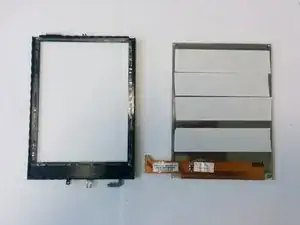

Remove black frame. It's attached to the screen by double sided tape

Schritt 8

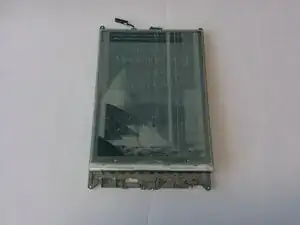

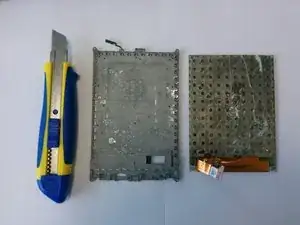

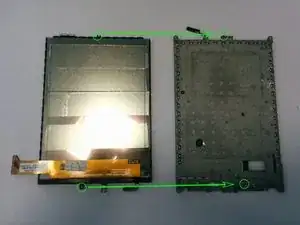

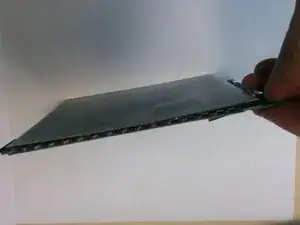

Use any suitable knife to detach broken screen from metal plate. Please, be very careful. Do not hurt yourself!
After you did this. You need to clean metal plate from the remnants of glue and double sided tape.

Schritt 9

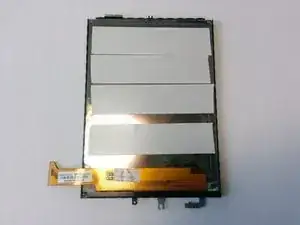

Take a new screen. Apply double sided tape on back side.

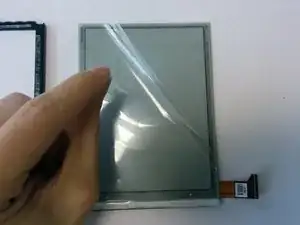

Remove protective film from the screen
Put the screen into the black frame. Upper side of the screen should touch upper side of the frame.

Schritt 10

Carefully join the screen in a black frame with the metal plate.
Continue assembling in a reverse order

Abschluss

To reassemble your device, follow these instructions in reverse order.
