Sony SEL55210 Camera Lens Disassembly

Geschrieben von: Nathan Rose
  • Kommentare: 2
Sony SEL55210 Camera Lens Disassembly

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

2 Stunden

Einleitung

Identification

This lens can be identified by the markings “E 4.5-6.3/55-210 OSS” in addition to the model/serial number sticker.

Wikipedia Page

Sony Support Page

  1. MCpnAlNOM4BCgAIZ

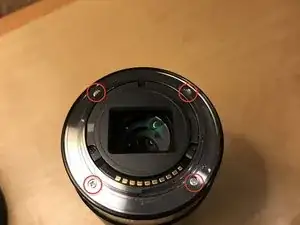

    • Remove 4 screws

  2. l5LytwKmPsXilQ16

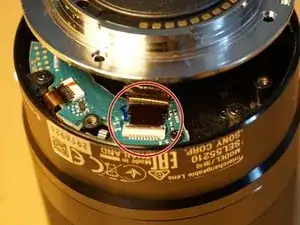

    • Gently disconnect cable from ZIP connector.

    • iFixit connector guide.

    • Remove E-mount bezel.

    • Avoid stressing flat cables.

    • Sensitive electronics - avoid static discharge.

  3. Ea2wCIKjGJj1hYtj

    • Gently disconnect 3 cables from ZIP connector.

    • The two wider connectors open from the cable side, the thinner connector opens from the back side.

    • iFixit connector guide.

  4. 5VuGZNLjxSprvNSl
    5VuGZNLjxSprvNSl
    kSMAIua1xwOvsq2f
    PRuBUVKVOBNjVwKY

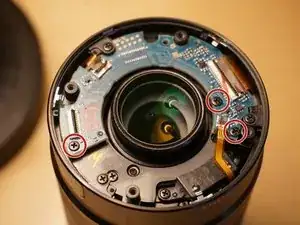

    • Remove 3 screws

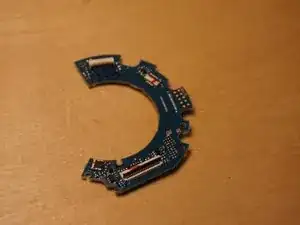

    • Remove printed circuit board.

    • Sensitive electronics - avoid static discharge.

  5. eHqgtU6tJUZUnQQF
    eHqgtU6tJUZUnQQF
    bNZG4QPAjYBvJIsE
    RoRAD5Gstv4dZTEr

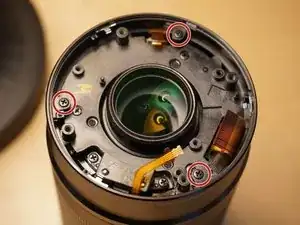

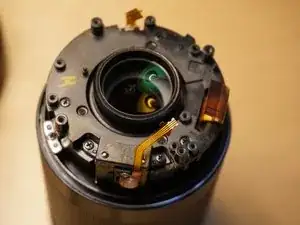

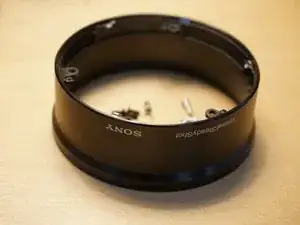

    • Remove three screws from outer bezel ears.

    • Gently remove bezel.

    • Be mindful of cables when removing bezel.

  6. 5M1QCnyLqAhxM5LZ
    5M1QCnyLqAhxM5LZ
    I4VjUTLUMru2XOKv
    WPXS1JX6VJmUYqak

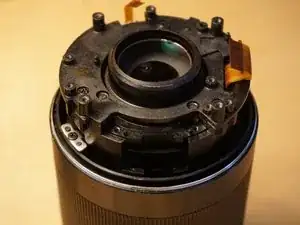

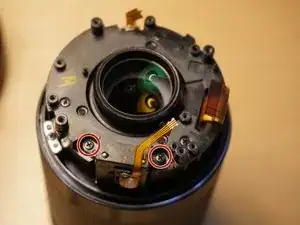

    • Remove 2 screws from lens park sensor.

    • Remove lens park sensor.

  7. CkY42gteN1RuGI4S
    CkY42gteN1RuGI4S
    KCetsCPSYu63hGGS

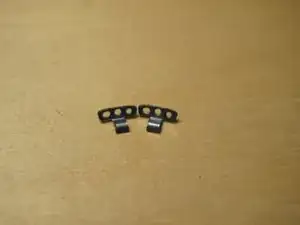

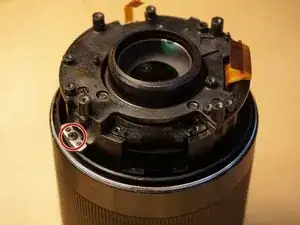

    • Remove 2 screws from 2 lens brackets.

    • Remove brackets.

  8. dfu3ZtBQvALoKEkY

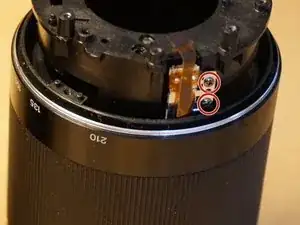

    • Loosen (or remove) 2 telescope sensor screws.

    • Do not remove this sensor - it is connected via a flat cable to the focus ring.

  9. jetnDGqpHKO6AgWT
    jetnDGqpHKO6AgWT
    KgpnLElgQ3cKfy25
    wRJHNeBVd3B5RRic

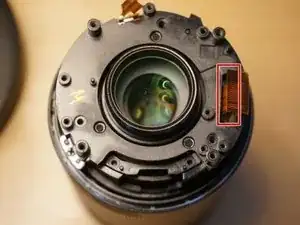

    • Remove 3 screws.

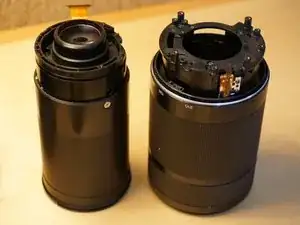

    • Pull lens out of external encasement.

    • Maneuver the telescope sensor so that it unmates from the slot in the internal lens body

    • Carefully feed the OSS/AF motor wire through the slot.

  10. swFnGW2TZiTM3Rft
    swFnGW2TZiTM3Rft
    ETN3QbQM2PeogpWD

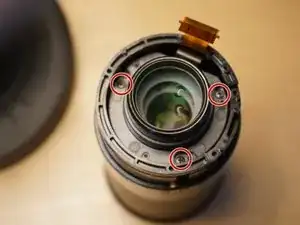

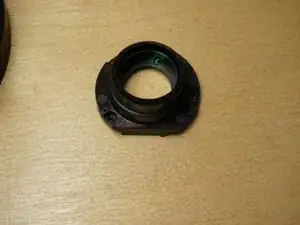

    • Remove 3 screws

    • Remove the lens element.

  11. ONDsuJTXnklrbxQc
    ONDsuJTXnklrbxQc
    vkeEUkdslFedqKyb

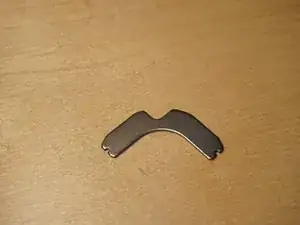

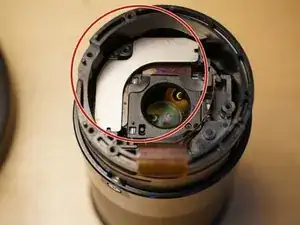

    • Gently pry up magnetic OSS retaining bracket.

  12. SBJkTseUwyNpHpf1
    SBJkTseUwyNpHpf1
    reJI4CKLIEyi4BGE
    Gs1EAKPnhw2NWmRE

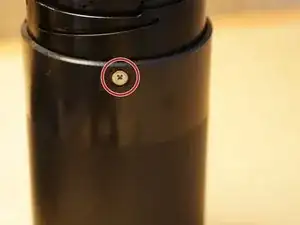

    • Remove 3 screws from the aperture end of the telescoping mechanism.

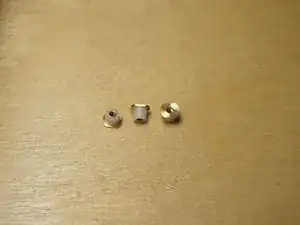

    • Lift lens to reveal and remove 3 brass/nylon nuts.

    Will this give me access to the outer lens so I can clean the inside and outside?

    Ed Oro -

  13. uZT5RAW3jbNbl5Sl

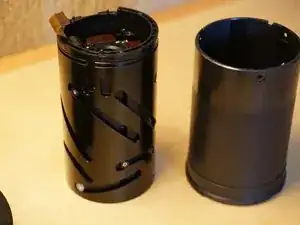

    • Remove outer optical lens sleeve.

  14. iImAFhE5dJsboEKL
    iImAFhE5dJsboEKL
    5oHmHXS2VgKeyLVZ

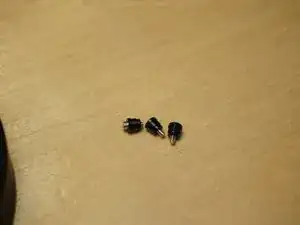

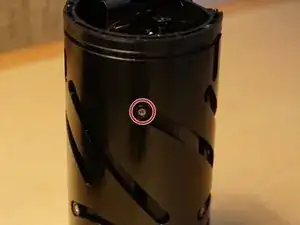

    • Remove 3 screws from the slide guides on the aperture end of the lens.

    • Remove 3 black nylon slide washers from the lens encasement.

  15. QexJLSktegSOJdQU

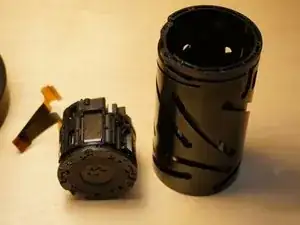

    • Remove the OSS/AF mechanism.

    • Gently pull the cable up and out from the lens encasement groove.

  16. oglO3GmYgAuUDZpF
    oglO3GmYgAuUDZpF
    DaZjXaYmUqVVoy5Z
    KJAPUygkYcIWkHBf

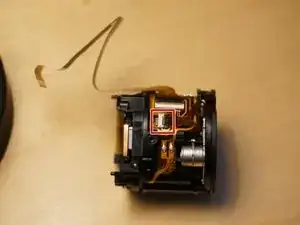

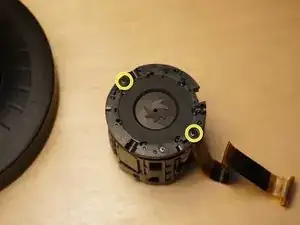

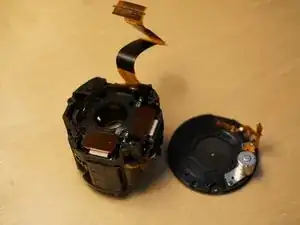

    • Remove Kapton tape from aperture motor connector.

    • Save tape for reassembly

    • Disconnect aperture connector.

    • Remove 2 screws from aperture ring.

    • Remove aperture mechanism.

  17. F3DM1OyKlCDXKGqS
    F3DM1OyKlCDXKGqS
    ELRthKLK2Hx1jKv6

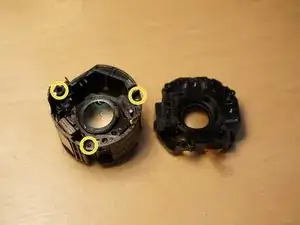

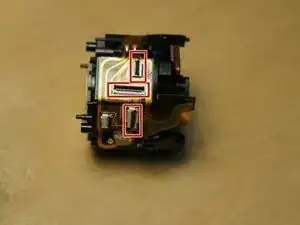

    • Disconnect 3 cables.

    • Remove 3 screws

    • Gently separate the OSS mechanism.

Abschluss

To reassemble your device, follow these instructions in reverse order.
