Sony SLT Alpha-65V Back Panel Disassembly

Geschrieben von: Dima Kyle
  • Kommentare: 3
Sony SLT Alpha-65V Back Panel Disassembly

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will show you how to remove the back panel of the Sony Alpha 65 camera in order to access the circuit board and the other components inside the camera. This requires using a Phillips #00 screwdriver and tweezers. Be sure to keep track of all screws that come off the camera.

  1. V25saVJQI2ANmyXV
    V25saVJQI2ANmyXV
    GxQjMaX5FI6VigKN

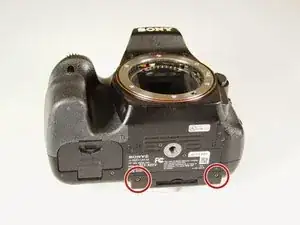

    • Remove the two 4.0 mm Phillips #00 screws on the base of the camera.

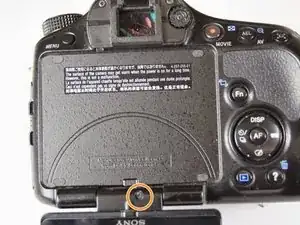

    • Remove the 3.0 mm Phillips #00 screw on the hinge of the screen.

  2. gKKBF1mxVLJM63YW
    gKKBF1mxVLJM63YW
    gJiOGNpWbbqhNFRM

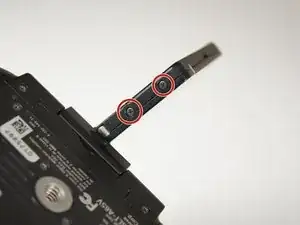

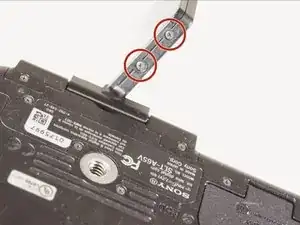

    • Remove the two 2.0 mm Phillips #00 screws on the bottom-right side of the screen.

    • Remove the two 2.0 mm Phillips #00 screws on the bottom-left side of the screen.

  3. ha6AsbnLEgECIWSY

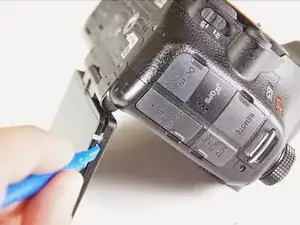

    • Use the plastic opening tool to gently pry the screen open around the entire screen.

  4. 2j6Ohg1wnVfqiZMW
    2j6Ohg1wnVfqiZMW
    4ogfYCc42LdnUMHc
    IgKFhLK1NTtrKYYN

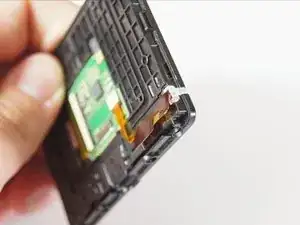

    • The brown ribbon and white light on the edge of the screen are extremely loose and will fall off off. Keep the screen flat at all times to make sure they don't come out.

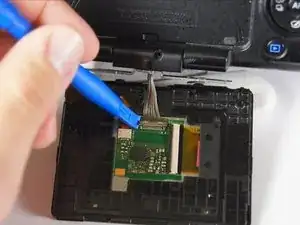

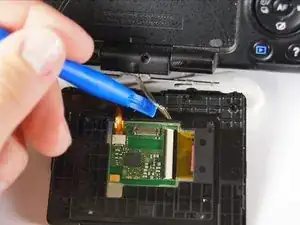

    • Use a plastic opening tool to disconnect the silver wires from the screen's circuitry and completely remove the screen from the camera.

    Hi thank you for the post I have managed to do this. But unfortunately broken one of the multi connection wires as shown in your image 4 please can you suggest what are my options. Thanks

    Vengo2005 -

    Hi I have broken one of the wire from the metal looking connector. As shown in the step 4 image. Could you suggest me my options. Thank you. Hope fully not replace the camera

    Vengo2005 -

    How do you open the plastic cover holding the lcd screen itself after ? It seems sealed :(

    thefirestarter -

  5. rahyACKDqMEjLoOk

    • Unscrew the four 4.0 mm Phillips #00 screws with a on the base of the camera below the the scheme that separates the front and back panels.

    • Unscrew the 5.0 mm Phillips #00 screw on the bottom right of the camera.

  6. ilAYjLAikImsd1lU

    • Unscrew the 4.0 mm Phillips #00 screw on bottom of the left side of the camera.

    • Unscrew the 5.0 mm Phillips #00 screw near the top of the left side of the camera.

  7. efGluL4VAIyxIkkG

    • Be careful when pulling the back panel away as it will still be connected to the body of the camera by two strips of film.

    • When unscrewing the 5.0 mm screw on the dial, make sure to hold onto the dial that becomes detached after taking out the screw.

    • Unscrew the two 4.0 mm Phillips #00 screw at the top of the camera by the eyepiece.

    • Unscrew the 5.0 mm Phillips #00 screw of the dial below the other two screws.

    • Once all the screws are removed, carefully use your hands to detach the back panel from the camera. Working around the edges can help as well.

  8. NFJR2cxVOrlqy2ML
    NFJR2cxVOrlqy2ML
    Kwegnj2f3dHu5SXe
    vdLHFwYPEXBQuXmy

    • Remove the two 4.0 mm Phillips #00 screws on the right of the camera that are located on the upper right side and under the "Remote" port flap.

    • Detach the right side panel with the remote and HDMI ports of the camera by gently pulling on the panel.

  9. XlfD2aVWDJBnjMgM

    • When the back panel is removed, be careful when moving the camera. There are parts inside the camera which now may come loose.

    • Use tweezers to remove the blue and orange ribbon connectors from their connection points pictured here.

Abschluss

To reassemble your device, follow these instructions in reverse order.
