Sony SRS-BTX300 Battery Pack Disassembly

Geschrieben von: Raffael Anklin
  • Kommentare: 4
Sony SRS-BTX300 Battery Pack Disassembly

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

30 Minuten

Einleitung

Ersatzteile

  1. qHaGZYxiJNhODjLR

    • Start opening the battery panel by removing the two rubber seals.

  2. Teme4fx3MsveZUHA

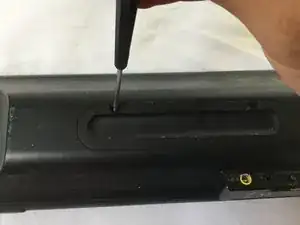

    • Use a phillips tip screwdriver to open the battery panel.

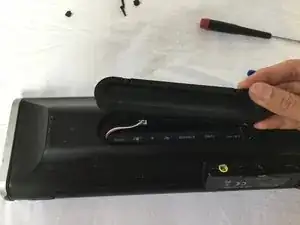

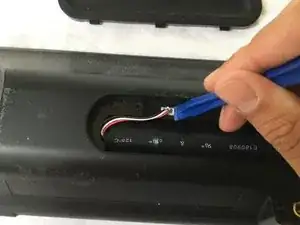

  3. ciITt3jHnvbj61Gx
    ciITt3jHnvbj61Gx
    MNfshmbJjkmXmGLS

    • Lift up the panel and unplug the battery.

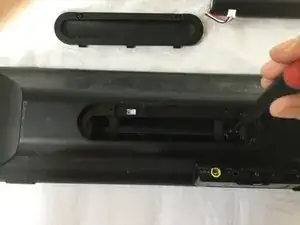

  4. Zdc6QZRQbVxK2ogi

    • Under the battery there are two phillips tip screws. Remove them to continue to the motherboard disassembly.

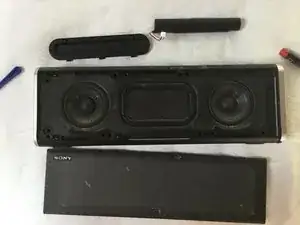

  5. iLW2YBPcsFeOBAZG
    iLW2YBPcsFeOBAZG
    KiLVTJSvZ6JoLCUM
    qn5e1jSCwFGyxiqR

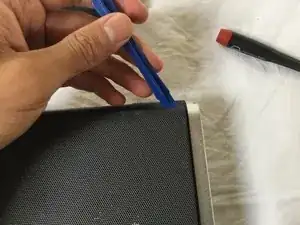

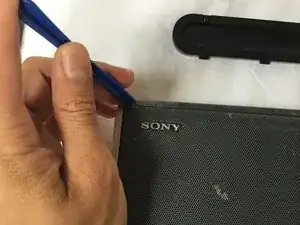

    • Use a spattle to lift up the front enclosure.

  6. lqIoLZFeRmXTyNqH

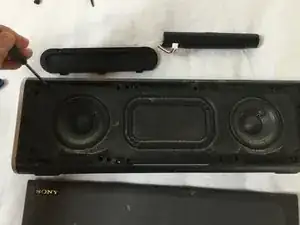

    • Use a phillips screw driver to remove all the visibel screws. There should be 17 screws.

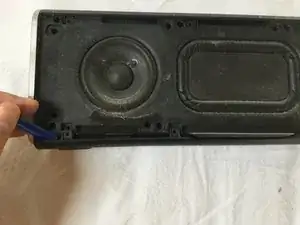

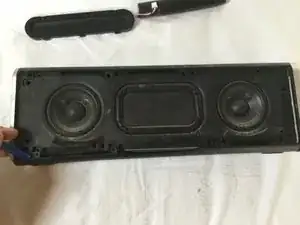

  7. IXMpkntNthcAhZiV
    IXMpkntNthcAhZiV
    VS55HohCcVZ4SACC

    • Gently pull down the bottom enclosure and remove it.

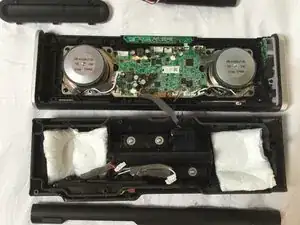

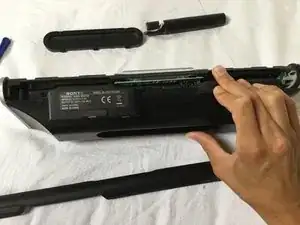

  8. FlKnLWO5N24XcrRx
    FlKnLWO5N24XcrRx
    VCy1eHgRByFNGkCZ
    etljw3IcJeLaaL3l

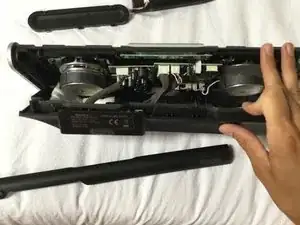

    • Use your fingers to remove the back enclosure. Unplug the cabels before removing it completely.

Tinte & Feder

Raffael Anklin

Mitglied seit: 08/07/19

157 Reputation

4 Kommentare

Akku ersatz von Sony SRS BTX300

Die Batterie wurde ersetzt, lädt sich jedoch nicht auf oder startet nicht.

Obwohl es startet, wenn es an ein Netzteil angeschlossen ist, ist das Ladegerät nicht kaputt

Könntest du mir bitte weiter helfen?

TH avi -

eng. version:

The battery has been replaced but will not charge or will not start.

Although it starts up when plugged into a power adapter, the charger is not broken.

Could you please help me?

TH avi -

Hmm you could try a few things:

- Disconnect and connect the batterie -> Observe the status LED if it charges (change colour or so…)

- Meassure the voltage accross the battery (min 3.0V or more)

- Check the connection between batterie and the PCB

Raffael Anklin -

Tahnk you for your answer.

The LED is becomming red as it is charging, and after a few seconds it turns of, like it is charged already. But when the power cord is disconnected, the speaker dies.

I will try to open it and check the connections between batteries and PCB, also measure the voltage of the batteries and keep you posted. Weird is that I bought two sets of batteries and it does the same with each one. Unforntunately, I do not have the old battery anymore, because I have dissasemble it because I tought it is not good anymore, but apparently the batteries work fine.

Thank you again :)

TH avi -
