Sony SRS-X5 Bluetooth Replacement

Geschrieben von: Jeffrey Yalung

Kommentare: 6

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

8 Minuten

Einleitung

Use this guide to remove a faulty Bluetooth component.

Werkzeuge

Schritt 1

To gain access to the 6 bottom screws remove the following. Remove the adhered 4 corner foam pads on the bottom of the speaker using the blue plastic opening tool to reveal the screws underneath. Remove the adhered 2 center plastic squares.
Make sure the speaker is unplugged and powered down before doing any work on the device.

Be consistent with vocabulary. For example, on the first step you used "foam pieces" and "pads" to identify the same thing and it may be confusing for some users.

Yuri Borges - 30/11/16

Schritt 2

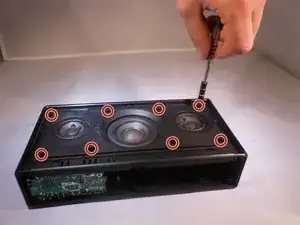

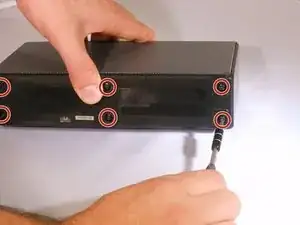

Unscrew the six 6mm screws with a Phillips head #1 screwdriver.

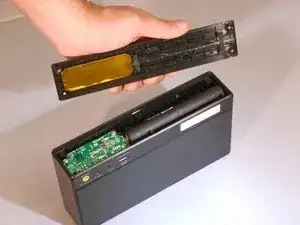

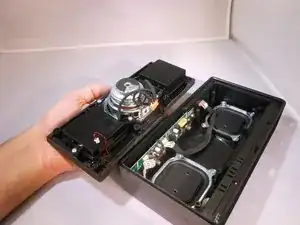

Remove the bottom panel of the speaker.

Schritt 3

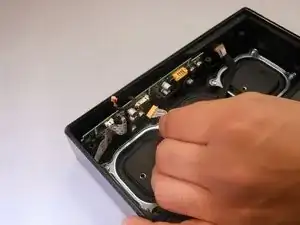

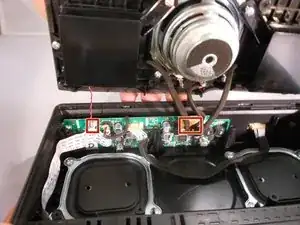

Unplug the battery by gently pinching the plastic end connected to the smaller board and pull away.
Remove the battery.

Schritt 4

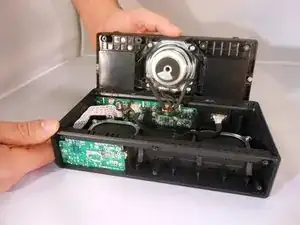

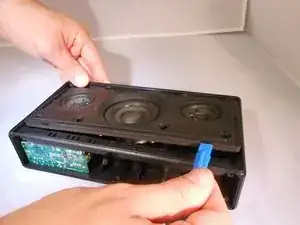

To remove the speaker grill, first push down slightly on the 2 plastic hook tabs to release them, then push the middle plastic screw tab out.

not sure how to do this.

some how the middle parts is hard to push

Raffaello Sanzio - 12/09/17

Remove the panel NOT by pushing or pulling the centre tab or you will break it. Instead, you’ll see two small tabs that must gently be pushed a little. Do not apply too much force. Once the grille comes loose pull it up. The upper side of the grille simply locks into place by moulded lips that fit into the top section of the product. Take care not to damage the now exposed loudspeakers.

wim.1671 - 31/12/18
