Sony SRS-X5 USB/AUX plug in Replacement

Geschrieben von: Jeffrey Yalung
  • Kommentare: 8
Sony SRS-X5 USB/AUX plug in Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

9 Minuten

Einleitung

This guide demonstrates how to replace the USB/AUX board.

  1. MUtIhPPaCxEBOXHR

    • To gain access to the 6 bottom screws remove the following. Remove the adhered 4 corner foam pads on the bottom of the speaker using the blue plastic opening tool to reveal the screws underneath. Remove the adhered 2 center plastic squares.

    • Make sure the speaker is unplugged and powered down before doing any work on the device.

    Be consistent with vocabulary. For example, on the first step you used "foam pieces" and "pads" to identify the same thing and it may be confusing for some users.

    Yuri Borges -

  2. AwvUSmcV3nOSVfqT
    AwvUSmcV3nOSVfqT
    WUXoGjELUOrxFbyg

    • Unscrew the six 6mm screws with a Phillips head #1 screwdriver.

    • Remove the bottom panel of the speaker.

  3. ZkSJLmL5cNrXAyfc

    • Unplug the battery by gently pinching the plastic end connected to the smaller board and pull away.

    • Remove the battery.

  4. lGR1QuRNLFTaWelI

    • To remove the speaker grill, first push down slightly on the 2 plastic hook tabs to release them, then push the middle plastic screw tab out.

    not sure how to do this.

    some how the middle parts is hard to push

    Raffaello Sanzio -

    Remove the panel NOT by pushing or pulling the centre tab or you will break it. Instead, you’ll see two small tabs that must gently be pushed a little. Do not apply too much force. Once the grille comes loose pull it up. The upper side of the grille simply locks into place by moulded lips that fit into the top section of the product. Take care not to damage the now exposed loudspeakers.

    wim.1671 -

  5. 1cNLIMFCpCVDugdZ

    • Remove the eight 0.5mm Phillips #1 screws from the speaker panel.

  6. aiSNIKQVjuFndWE4
    aiSNIKQVjuFndWE4
    6iKhhvttKVSAMChO

    • Using the plastic opening tool, flip open the speaker panel.

  7. 6bFmTvWH6qCgMBB6
    6bFmTvWH6qCgMBB6
    Btp3GYloIVI2MWyG
    3XV2mn5w4xHgiesH

    • Unplug the 6-pin speaker connector and 2-pin microphone connector from the motherboard by squeezing the sides of the plastic ends.

    where can i buy a spare speaker????????

    bollebaab-bouwer -

  8. DygYNlIbONmj1jXg
    DygYNlIbONmj1jXg
    DXFeVgiMBB5Qw1WW

    • Unplug the cord connected to the motherboard by squeezing the plastic sides.

  9. 5lygP4WENKTK4riC

    • Gently tug on the plastic ribbon connected to the bottom side of the speaker to unplug it.

  10. KMNhOcsqONWOSshE

    • Remove the motherboard.

    Good disassembly directions, but titlle is Bluetooth replacement. No parts needed? How do we replace bluetooth part?

    Mark Savage -

  11. Sy2DpYfZjYSH1yYd
    Sy2DpYfZjYSH1yYd
    NWaFdWTjlUfGxpYD

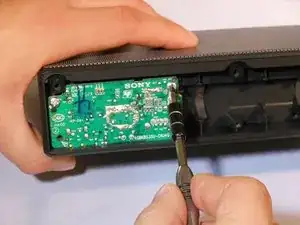

    • Using the Phillips #1 screwdriver, remove the two 6mm screws holding the AUX board in place.

  12. xRFG3YSF16IIO3o4

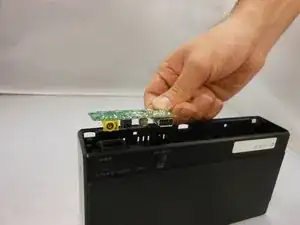

    • Remove the aux board. Be careful as the board might need some wiggling to get out.

    Nice tutorial. The pics and instruction were crystal clear. Good

    Steven Peterson -

Abschluss

To reassemble your device, follow these instructions in reverse order.
