Sony SRS-X55 Button Circuit Board Replacement

Geschrieben von: Crosby Taylor
  • Kommentare: 11
Sony SRS-X55 Button Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

If the controls or indicator LEDs of your Sony SRS-X55 have stopped working, use this guide to replace the speaker's button board.

  1. mweKTErtkA2IinSm
    mweKTErtkA2IinSm
    wOjFZCPAmVEtmKQM
    VZwUNZAbNNu3KBpI

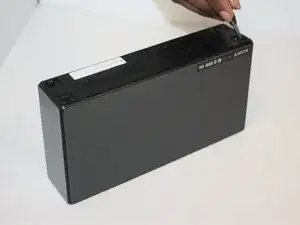

    • Remove the six screw covers with a spudger.

    • Remove the six 11 mm Phillips screws from the bottom panel.

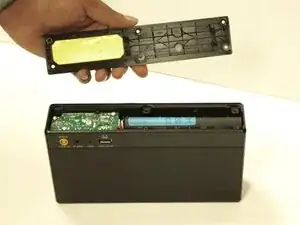

    • Remove the bottom panel of the speaker.

    Geez, they make it a 'challenge' to get those gaskets under the batt covers off.

    Don't make ant immediate plans....call your wife, you're gonna be a little late.

    Jim Malina -

    I need battery with board please help ??

    Kevin Ke -

  2. nwuAqomPXWPGKFQh

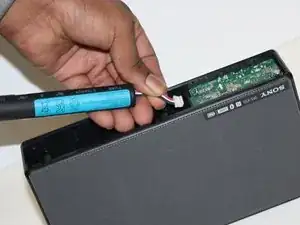

    • Disconnect the battery cable from the motherboard.

    • Remove the battery.

    looks like 2 x 18650 batteries in a heatshrink sleeve..

    konanick -

    I need battery and board please

    Kevin Ke -

  3. JBaVUSfjKlXB4fv2

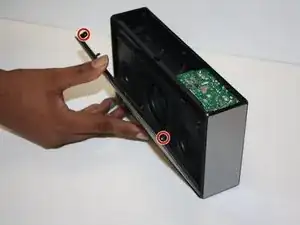

    • Remove the speaker grill by pushing on the two tabs in the corners.

  4. TNCTxKNF1SEUDc5A

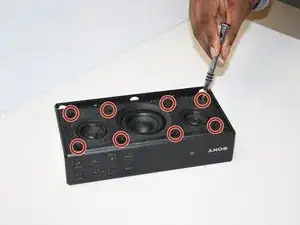

    • Remove the eight 0.5mm Phillips #1 screws from the speaker panel.

    Hello, do you know where I could find the speakers to replace at my personal audio system SRSx5 ?

    marcelogonc -

  5. XbRWPUBUyYVBiGWy

    • Using the flat side of the metal spudger, apply pressure to underside of the cover to loosen the adhesive and separate the cover from the top of the speaker.

    • When working with electronics, it's important to choose a tool that's ESD-safe to avoid accidental damage to the device. The regular black nylon spudger or a plastic opening tool should be used whenever possible.

  6. K3vYPVwwPMciD54m

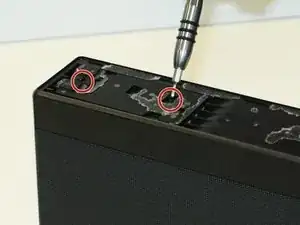

    • Using the Phillips #00 screwdriver, pull out the three screws keeping the button board in place.

    Friend at least let us know the circuit model no. Offer equivalent

    Manoj Acharya -

  7. heCJYOQFcBhRCeYM

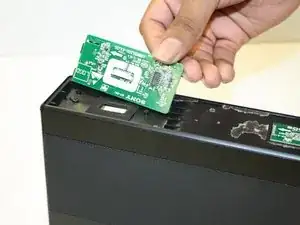

    • Remove the button board from the speaker.

    PLEASE give me new PLET and BUTTON

    laladharmendralala -

Abschluss

To reassemble your device, follow these instructions in reverse order.
