Sony SRS-X55 I/O Board Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

If your Sony SRS-X55 speaker won't play sound from the auxiliary jack, replacing the I/O board may resolve the problem.

  1. mweKTErtkA2IinSm
    mweKTErtkA2IinSm
    wOjFZCPAmVEtmKQM
    VZwUNZAbNNu3KBpI

    • Remove the six screw covers with a spudger.

    • Remove the six 11 mm Phillips screws from the bottom panel.

    • Remove the bottom panel of the speaker.

    Geez, they make it a 'challenge' to get those gaskets under the batt covers off.

    Don't make ant immediate plans....call your wife, you're gonna be a little late.

    Jim Malina -

    I need battery with board please help ??

    Kevin Ke -

  2. nwuAqomPXWPGKFQh

    • Disconnect the battery cable from the motherboard.

    • Remove the battery.

    looks like 2 x 18650 batteries in a heatshrink sleeve..

    konanick -

    I need battery and board please

    Kevin Ke -

  3. EujaIHmLcpwslAvd
    EujaIHmLcpwslAvd
    Y2MYwwUwgruUy1In

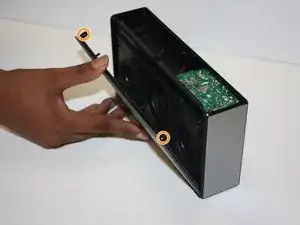

    • Remove the two Phillips screws from the I/O board.

    • Remove the front panel to the speaker by pushing on the two tabs in the corners.

  4. udOLKMndVZavAZOU

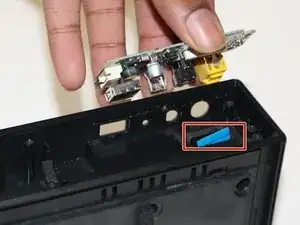

    • Disconnect the ribbon cable from the I/O board.

    • Carefully remove the I/O board from the speaker.

    Is the I/0 board available, mine is damaged and the took it to repair shop but they are saying it cant be repaired

    Anto Majesty -

Abschluss

To reassemble your device, follow these instructions in reverse order.
