This guide is a walk through for how to remove and replace the input board for the Sony SRS-X55 speaker.

  1. bu5WRqR3gFHbyMbs
    • Locate the six 9 mm screws on the bottom of the SRS-X55 and remove them using a Phillips head #2 screwdriver.

  2. EjGqep1mjNkmOYim
    EjGqep1mjNkmOYim
    AaZwaDQlvZLCJjbb

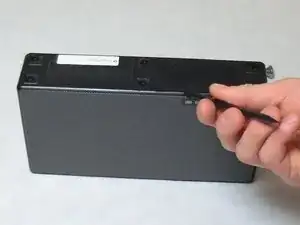

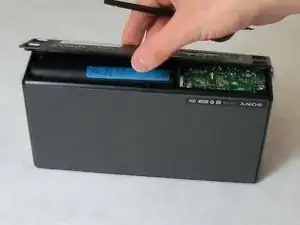

    • Insert a plastic spudger at the seam of the bottom panel and remove it from the rest of the speaker.

  3. FUsyMrbXrFxPIwI2
    FUsyMrbXrFxPIwI2
    uGBkCqN2DCmYEAyf
    HHmkYqZUgNYlhbNe

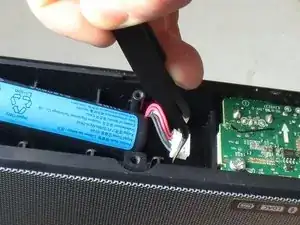

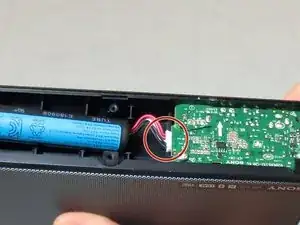

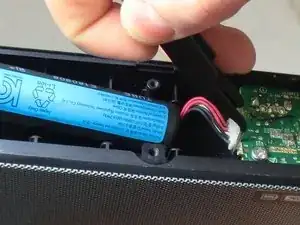

    • Locate the battery plug and remove it using a pair of tweezers.

  4. JHUVIDXkiHi4TmJp
    JHUVIDXkiHi4TmJp
    pxREpSYEZGePbQX2
    X24QuP15XhNNkLM1

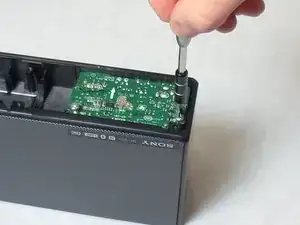

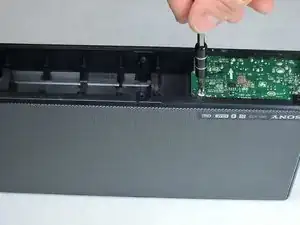

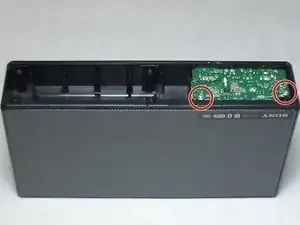

    • Locate the two 3.5 mm screws on the bottom of the I/O board and remove them using a Phillips head #2 screwdriver.

  5. J2pNdXTEyWSR4O5P

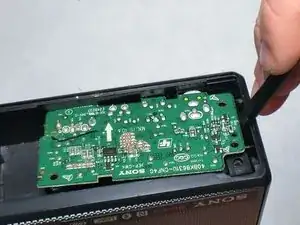

    • Use a plastic spudger to remove the I/O board from the speaker body.

  6. bcfN4rKFTe1EMN1T
    bcfN4rKFTe1EMN1T
    CNvLsfJ2KflqaHUK

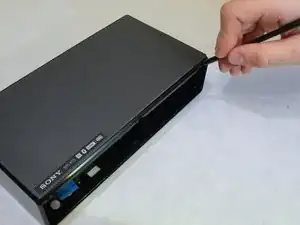

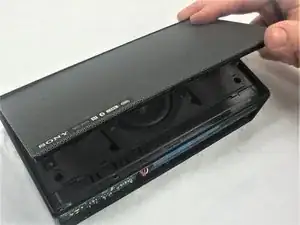

    • Insert a plastic spudger into the seam of the metal speaker cover and pry it downward until it releases from the speaker body.

  7. cqg5ffc5l35IcpOC
    cqg5ffc5l35IcpOC
    X3FObWZ1FMDp1ogu

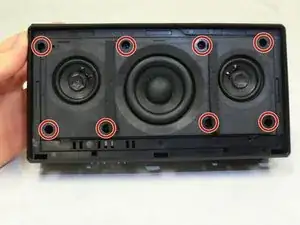

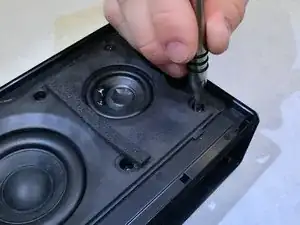

    • Locate the eight 8.9 mm screws on the face of the speaker assembly and remove them using a Phillips head #2 screwdriver.

  8. eSOBUpRJVPfIcEPf
    eSOBUpRJVPfIcEPf
    sUraGK1pTCpJIgPJ

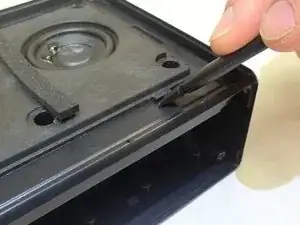

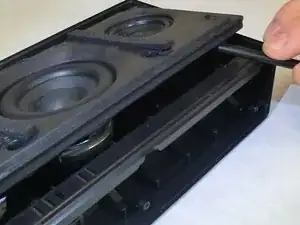

    • Insert a plastic spudger underneath one of the tabs located on the front of the speaker assembly and gently raise the speaker assembly above the rest of the speaker.

    • Continue to the next step before attempting to lift the speaker assembly from the rest of the speaker entirely to avoid damaging internal wires.

  9. F2GwCSNAL5JfrnV5
    F2GwCSNAL5JfrnV5
    hDfINbjGxj1dHKCO
    JuTQ6KtRQb3M62fj

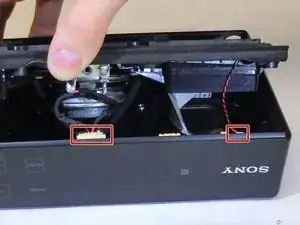

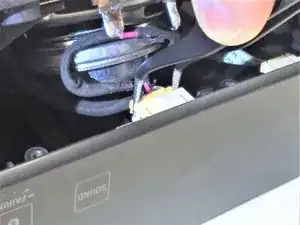

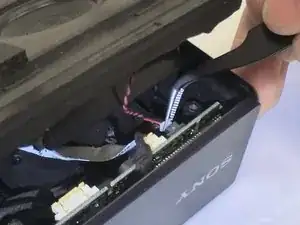

    • Locate the two wire connections as shown underneath of the speaker assembly and unplug them using a pair of tweezers.

  10. GPMNxkD1eN5YMTdZ

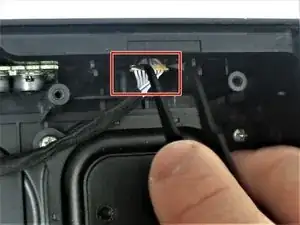

    • Locate the wire connecting the motherboard and the input board under the top panel of the speaker and remove it using a pair of tweezers.

  11. aUNUdLDQ3CnR55qo
    aUNUdLDQ3CnR55qo
    4iksZLDEknPm6VFn
    waQQkjwAMsUVD5WA

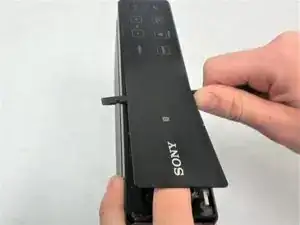

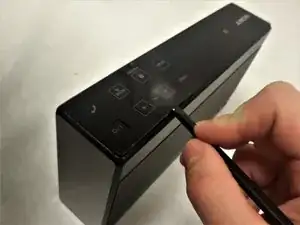

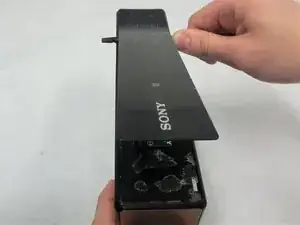

    • Insert a plastic spudger into the seam at the edge of the top panel and gently pry it away from the rest of the speaker.

    • The spudger can be inserted laterally into the opening created by the spudger and slid along the top as shown to remove the panel in a single motion.

  12. 5e4iBgjUipKKWESq

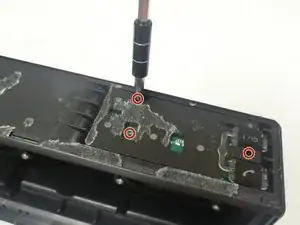

    • Locate the three 4.5 mm screws on top of the speaker input board and remove them using a Phillips head #2 screwdriver.

  13. OYXALuZpKwfMDXrA
    OYXALuZpKwfMDXrA
    4HLvGJntx6TQQZxg
    5UExftPY46EInGps

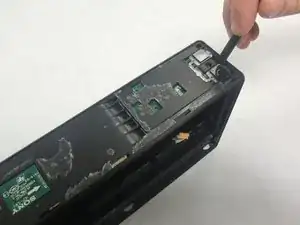

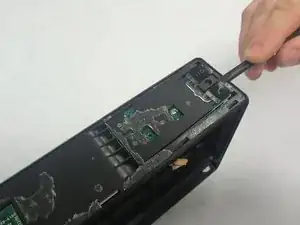

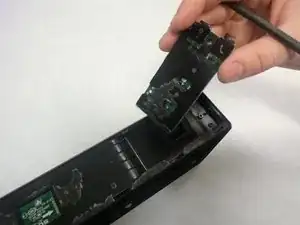

    • Insert a plastic spudger underneath the edge of the input board and gently pry it away from the rest of the speaker.
