Sony SRS-X55 Motherboard Replacement

Geschrieben von: Jordon McDuffie
  • Kommentare: 5
Sony SRS-X55 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

Use this guide to replace the motherboard of your Sony SRS-X55 speaker.

  1. mweKTErtkA2IinSm
    mweKTErtkA2IinSm
    wOjFZCPAmVEtmKQM
    VZwUNZAbNNu3KBpI

    • Remove the six screw covers with a spudger.

    • Remove the six 11 mm Phillips screws from the bottom panel.

    • Remove the bottom panel of the speaker.

    Geez, they make it a 'challenge' to get those gaskets under the batt covers off.

    Don't make ant immediate plans....call your wife, you're gonna be a little late.

    Jim Malina -

    I need battery with board please help ??

    Kevin Ke -

  2. nwuAqomPXWPGKFQh

    • Disconnect the battery cable from the motherboard.

    • Remove the battery.

    looks like 2 x 18650 batteries in a heatshrink sleeve..

    konanick -

    I need battery and board please

    Kevin Ke -

  3. JBaVUSfjKlXB4fv2

    • Remove the speaker grill by pushing on the two tabs in the corners.

  4. TNCTxKNF1SEUDc5A

    • Remove the eight 0.5mm Phillips #1 screws from the speaker panel.

    Hello, do you know where I could find the speakers to replace at my personal audio system SRSx5 ?

    marcelogonc -

  5. uApRZtQJ1ywbBve3
    uApRZtQJ1ywbBve3
    dsoeV3miFdxfIlNG
    ly1VPRZFpoU2ydIC

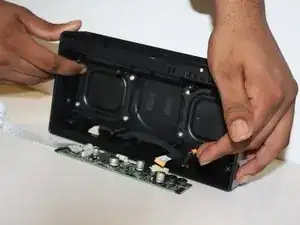

    • Flip open the speaker panel to access the interior of the device.

    • Carefully unplug the three cables and one ribbon connector connected to the motherboard.

    • Remove the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
