This Sony SRS-X55 has two speaker reverberators. This guide will walk you through the removal and replacement of them.

  1. WXGZAs5SyKE5Otsc
    • Locate the six 9 mm screws on the bottom of the speaker and remove them using Phillips head #2.

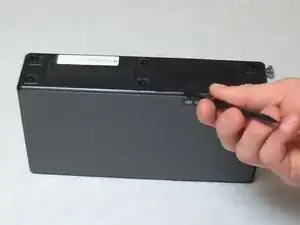

  2. ALZCpQTrHs43XlNg
    ALZCpQTrHs43XlNg
    OKoVrEnQNNpmefI6
    • Insert a plastic spudger into the seam on the bottom panel and lift it away from the rest of the speaker.

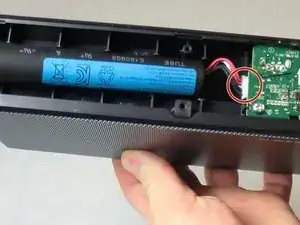

  3. GcOfSq4oaXlG62kA
    GcOfSq4oaXlG62kA

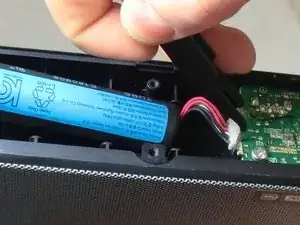

    55KqYwXlf6NLdF2p
    oF4HLE3JTAocc1tv

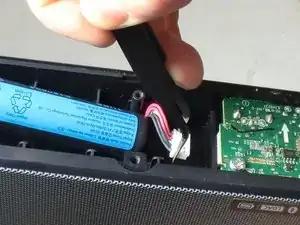

    • Locate the battery connection and unplug it using a pair of metal tweezers.

  4. 3st5PwZrgAOdcGRQ
    3st5PwZrgAOdcGRQ
    OPk1V3IqBGsADJxC

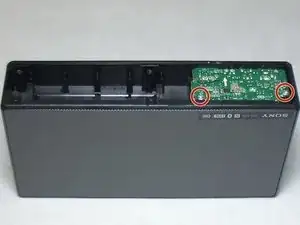

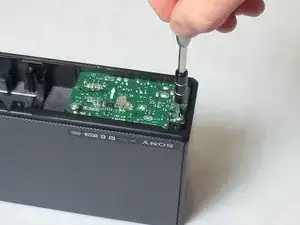

    • Locate the remaining two 3.5 mm screws on the bottom of the I/O board and remove them using a Phillips head #2 screwdriver.

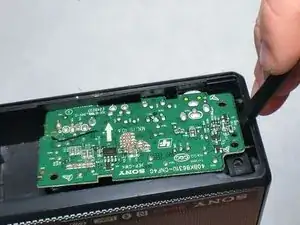

  5. bJylAYoFXMH2bySQ
    • Remove the I/O board from the rest of the speaker. A plastic spudger can aid in this process if it is inserted into the edge as shown and gently pried.

  6. LKNs25aJ5tWotsGt
    LKNs25aJ5tWotsGt
    UBxZ1WeLOTqvsL5F

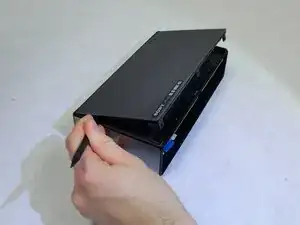

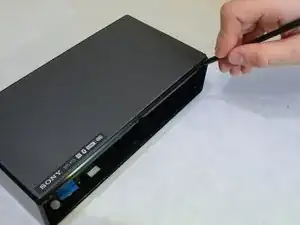

    • Insert a plastic spudger into the seam where the forward facing metal speaker cover meets the speaker body and gently pry it upward until it releases.

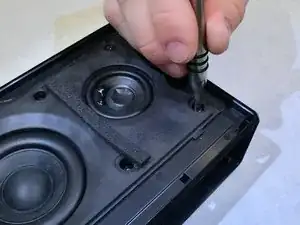

  7. IPZFAtBS4sZVlVFZ
    IPZFAtBS4sZVlVFZ
    CSiHZuKANFpS6PZK

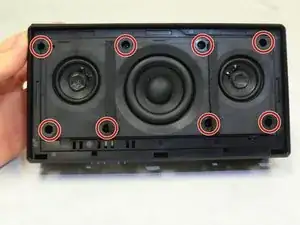

    • Locate the eight 8.9 mm screws on the face of the speaker assembly and remove them using a Phillips head #2 screwdriver.

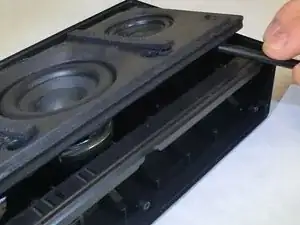

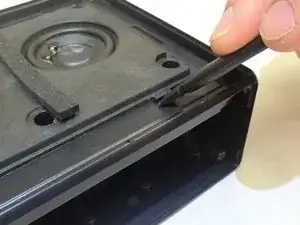

  8. b1kCqxtnBsRPaEtM
    b1kCqxtnBsRPaEtM
    CMmeUYGCMFucCxNT
    • Insert a plastic spudger underneath one of the tabs on the front of the speaker assembly and gently raise it.

    • Continue to the next step before attempting to lift the speaker assembly entirely away from the rest of the speaker to avoid damaging internal wire connections.

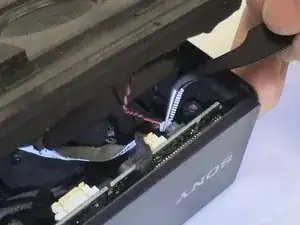

  9. ELXvO53p3uW4fmdA
    ELXvO53p3uW4fmdA
    UH1LHiqVeQeaV1N4
    GE5ZQ52l6UoUYjKX

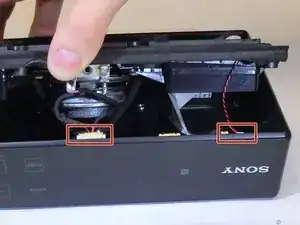

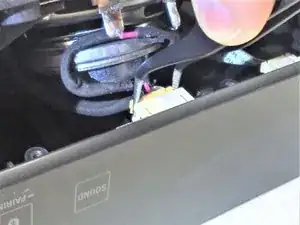

    • Locate the two wire connections as shown underneath of the speaker assembly and unplug them using a pair of tweezers.

    • Lift the speaker assembly away.

  10. JFK3SMB51WVdWYcq
    JFK3SMB51WVdWYcq
    jNCOMTS1QBSFnMoR

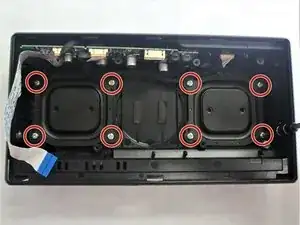

    • Locate the eight 7.5 mm screws across both of the speaker reverberators and remove them using a Phillips head #2 screwdriver.

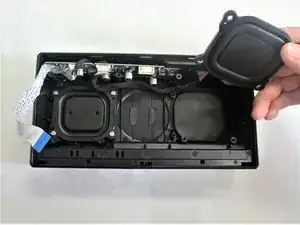

    • Lift the speaker reverberators away and replace them.

    What problem was this causing? And where can I purchase these?

    Brian -

Abschluss

To reassemble your device, follow these instructions in reverse order.
