Sony SRS-X7 Power Supply Replacement

Geschrieben von: Tyler Lamar
  • Kommentare: 4
Sony SRS-X7 Power Supply Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

3 - 5 Minuten

Einleitung

The power unit is obviously what powers your device. Without this you cannot use the device at all whatsoever.

Use this guide to uninstall the power unit from your device, then follow it in reverse order to install the new part.

  1. dHEpSQu1vbg2gfYQ
    dHEpSQu1vbg2gfYQ
    t4CZLSLdannKtZM2

    • For this guide, the faceplate disassembly is not necessary.

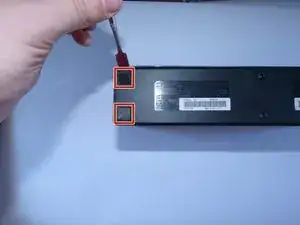

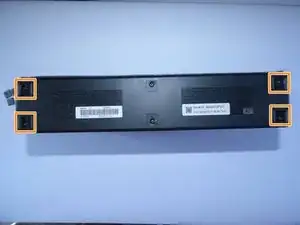

    • On the bottom of the device, you'll see 4 rubber pieces at the corners. Peel off these rubber pieces.

    • Unscrew the 4 10mm Philips J1 screws beneath them.

  2. JSUirx2shAEDFoQE
    JSUirx2shAEDFoQE
    EBnqjA6C6mtSAIuZ
    WZynpx4FnopeLhGt

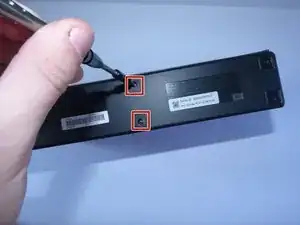

    • The black stickers between the 4 foam pieces are there to protect the unit's warranty. If you try to send the device back to Sony after poking through said stickers, they will not accept it as the device has been tampered with.

    • Poke through said stickers and unscrew the 2 10mm Philips J1 screws beneath those.

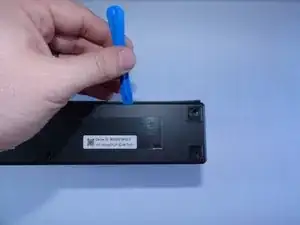

    • Insert the blue plastic tool into the corner of the bottom faceplate and slide along the edge.

    • It will be a bit difficult as there is adhesive holding the faceplate to the unit, but with it bit of playing it should come off with ease.

  3. dIu2MYrhgMMlJwBF
    dIu2MYrhgMMlJwBF
    RMc63XXF5xBkS2Uh
    ILvOCVAXMALqIRuN

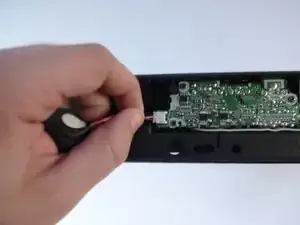

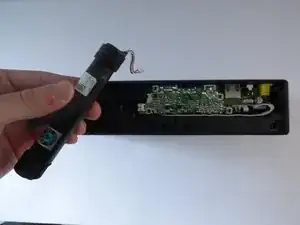

    • Remove the power supply. Be careful as the power supply is still connected to board.

    • Unplug the power supply from the small motherboard as shown.

Tinte & Feder

Tyler Lamar

Mitglied seit: 10/03/16

658 Reputation

4 Kommentare

Hi, do you know where can I find the replacement battery doy te SRS X7. THANKS

Miguel CHUNG SANG -

Hi I replaced my old battery with a new one (LIS2128HNPD). At amazon they say it is a replacement for the SRS-X5 but it perfectly fits in the X7 model too. Unfortunately the battery seems not to be charged (no orange led and the power supply has no load). Can anybody help?

Chris Heyde -

Hi, did you fixed it? I wonder if it’s really the same battery or if you got defect electronics. :-)

yo ! -

I am having the same problem . I wonder if the charging board that is wrapped in with the battery will have to be swapped from original battery to new battery?

Shibathedog -
