Sony SRS-XB30 Charging Port Replacement

Geschrieben von: Star Dragon
  • Kommentare: 13
Sony SRS-XB30 Charging Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

18

Zeitaufwand

5 - 10 Minuten

Einleitung

This Audio System is the model SRS-XB30. One of the common malfunctions is the charging port. This guide will show you step by step instructions on how to replace the charging port.

  1. mlOrLLJbiPmwmFsK

    • To remove the speaker grill, insert the big spudger underneath it in each corner.

    • Work around the edges to pry the grill up and off.

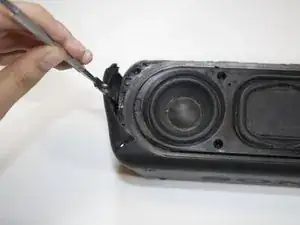

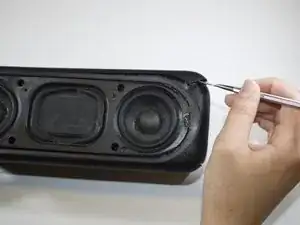

  2. Y3AmhEIqgUdDwq3v
    Y3AmhEIqgUdDwq3v
    qaqKWi4FMVpuGyQJ

    • With the Sony logo facing towards you, use the medium spudger to lift the side plates from the internal frame.

    • This will need to be done on all four sides of the speaker to remove all four panels

    • This requires some effort because the adhesive is sticky.

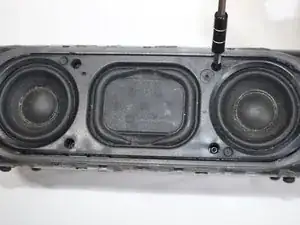

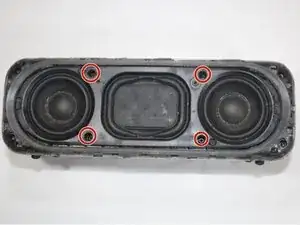

  3. eJnPEYySfPDnYKPH
    eJnPEYySfPDnYKPH
    uuTAhcfHuOWrlNNa

    • Locate the four screws on the now exposed front panel.

    • Using the screwdriver with bit T7, unscrew each screw (15.0 mm long).

    In my speakers it was T8 size

    Filipe Silva -

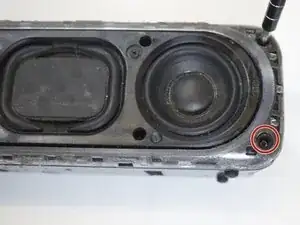

  4. UPhsr6xaQRvUxyVY

    • Next, remove the four outer edge screws, located on each corner of the speaker. The outer edge of the speaker is a clear plastic.

    • Use the same T7 screwdriver head here.

    • Remove each of the four corner screws (15.0 mm long).

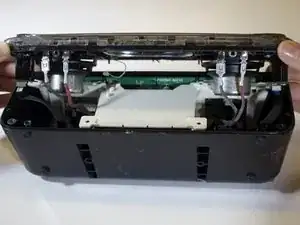

  5. N1UOBPBqYKXiQO6U

    • With a little force, carefully lift the lid of the speaker.

    • Make sure that you do not pull on the wires.

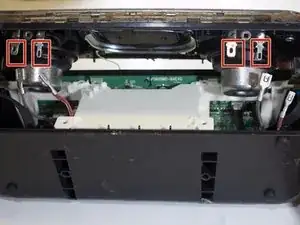

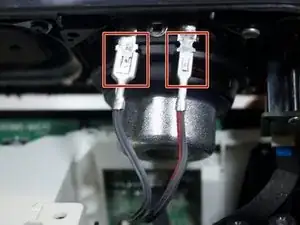

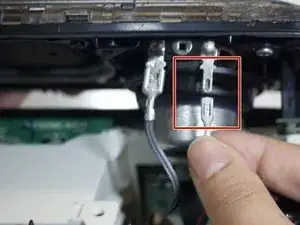

  6. BG13xNvRPwROOUuI
    BG13xNvRPwROOUuI
    qBuy5LfCOiOFqUWM
    1b4Nux5Pgv3Nntgk

    • Unclip the four wire connectors (that are attached to the speaker lid).

    • Disconnect the thin yellow wire (attached to the speaker lid) from its port.

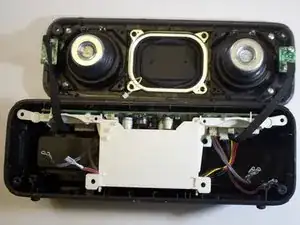

  7. NYEVgULGD1SJiUtp

    • Separate the speaker lid from the bottom frame.

    • To prepare the speaker for the next step place the lid parallel to the frame.

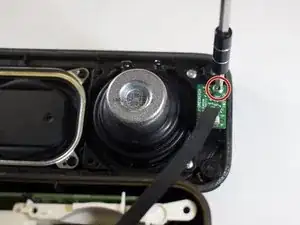

  8. bMPVIGhX5IIjMdFG

    • Locate the two silver screws (9 mm) attached to the two LED-light-chips on the speaker lid.

    • Using the screwdriver with bit PH1, unscrew each screw.

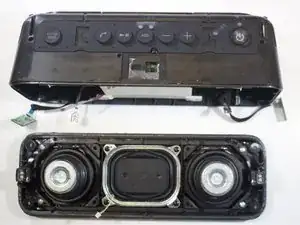

  9. U4i1KfJ6CFTaGf6f

    • Separate the speaker lid entirely from the bottom frame.

  10. NPiVPmi3HNy4RlId

    • Remove the top screw (10 mm).

    • Use the screwdriver with bit T7.

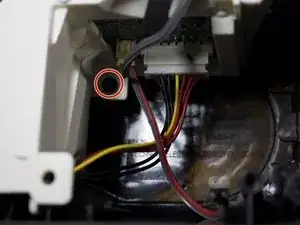

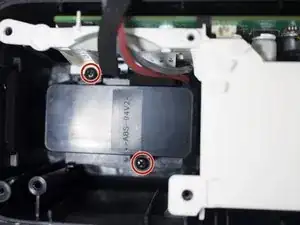

  11. CuAYBGgSZdaBUEuo
    CuAYBGgSZdaBUEuo
    iYouZkLbQTAqZCLp

    • Locate and remove the three black screws (10.0 mm) within the internal frame. Use bit T7.

    • There are two screws on the left side of the white box and one to its right.

    What is the power circuit board name? Where it found?

    hiftekhar16 -

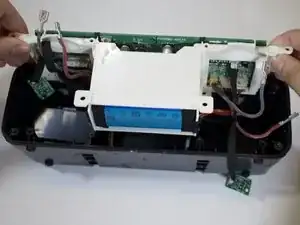

  12. BwCcBGeIEXJlUoEN

    • Slightly lift the white box with all the wires still attached.

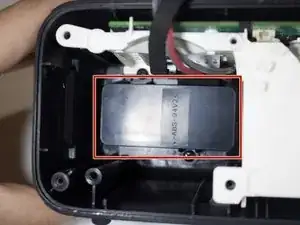

  13. OWPJwujEsdXC2gYU
    OWPJwujEsdXC2gYU
    buIFjSjsSX2AUFU3

    • Take the big spudger and pry the black casing up from the circuit box.

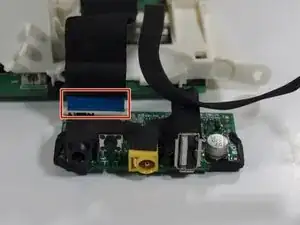

  14. eGD6inbLZvDMTwwu

    • Locate the blue film attached to the circuit box containing the charging port.

    • Detach the blue film from the box.

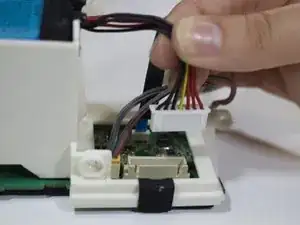

  15. HdV3TQQssaJhcVKT

    • Detach the yellow, black and red wires by pulling them directly up.

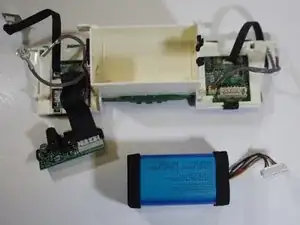

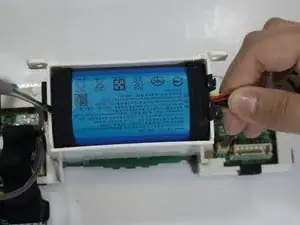

  16. VILZBOmmWTEeKfMk
    VILZBOmmWTEeKfMk
    wIf3gPFDEZXHkNaY

    • Insert the spudger along the battery edge and firmly hold the wires. Lift both sides up. The battery will pop out from its encasement.

    How I purchase this

    Sankrasan Basantia -

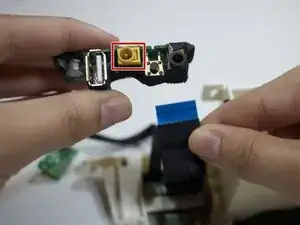

  17. n3XpoJrQ6JqLAA5Z

    • Locate the circuit box containing the yellow charging port.

    • Remove the circuit box from any attachments connecting it to the speaker.

    I have just received a new battery and fitted it but still does not turn on , am not able to find a replacement charging port even from Sony any help please

    Philip Bracken -

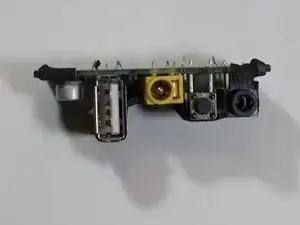

  18. X3AvKkDCyLseZWly

    • Insert a new circuit box.

    Wherre can i order a new circuit bord

    Daan Vulpen -

    please give me full circuit pcb board clear view of crarging port ,

    K Kabir -

Abschluss

To reassemble your device, follow these instructions in reverse order.
