Einleitung

  1. mlOrLLJbiPmwmFsK
    • To remove the speaker grill, insert the big spudger underneath it in each corner.

    • Work around the edges to pry the grill up and off.

  2. Y3AmhEIqgUdDwq3v
    Y3AmhEIqgUdDwq3v
    qaqKWi4FMVpuGyQJ
    • With the Sony logo facing towards you, use the medium spudger to lift the side plates from the internal frame.

    • This will need to be done on all four sides of the speaker to remove all four panels

    • This requires some effort because the adhesive is sticky.

  3. eJnPEYySfPDnYKPH
    eJnPEYySfPDnYKPH
    uuTAhcfHuOWrlNNa
    • Locate the four screws on the now exposed front panel.

    • Using the screwdriver with bit T7, unscrew each screw (15.0 mm long).

    In my speakers it was T8 size

    Filipe Silva -

  4. UPhsr6xaQRvUxyVY
    • Next, remove the four outer edge screws, located on each corner of the speaker. The outer edge of the speaker is a clear plastic.

    • Use the same T7 screwdriver head here.

    • Remove each of the four corner screws (15.0 mm long).

  5. N1UOBPBqYKXiQO6U
    • With a little force, carefully lift the lid of the speaker.

    • Make sure that you do not pull on the wires.

  6. BG13xNvRPwROOUuI
    BG13xNvRPwROOUuI
    qBuy5LfCOiOFqUWM
    1b4Nux5Pgv3Nntgk
    • Unclip the four wire connectors (that are attached to the speaker lid).

    • Disconnect the thin yellow wire (attached to the speaker lid) from its port.

  7. NYEVgULGD1SJiUtp
    • Separate the speaker lid from the bottom frame.

    • To prepare the speaker for the next step place the lid parallel to the frame.

  8. bMPVIGhX5IIjMdFG
    • Locate the two silver screws (9 mm) attached to the two LED-light-chips on the speaker lid.

    • Using the screwdriver with bit PH1, unscrew each screw.

  9. U4i1KfJ6CFTaGf6f
    • Separate the speaker lid entirely from the bottom frame.

  10. NPiVPmi3HNy4RlId
    • Remove the top screw (10 mm).

    • Use the screwdriver with bit T7.

  11. CuAYBGgSZdaBUEuo
    CuAYBGgSZdaBUEuo
    iYouZkLbQTAqZCLp
    • Locate and remove the three black screws (10.0 mm) within the internal frame. Use bit T7.

    • There are two screws on the left side of the white box and one to its right.

    What is the power circuit board name? Where it found?

    hiftekhar16 -

  12. BwCcBGeIEXJlUoEN
    • Slightly lift the white box with all the wires still attached.

  13. OWPJwujEsdXC2gYU
    OWPJwujEsdXC2gYU
    buIFjSjsSX2AUFU3
    • Take the big spudger and pry the black casing up from the circuit box.

  14. eGD6inbLZvDMTwwu
    • Locate the blue film attached to the circuit box containing the charging port.

    • Detach the blue film from the box.

  15. HdV3TQQssaJhcVKT
    • Detach the yellow, black and red wires by pulling them directly up.

  16. VILZBOmmWTEeKfMk
    VILZBOmmWTEeKfMk
    wIf3gPFDEZXHkNaY
    • Insert the spudger along the battery edge and firmly hold the wires. Lift both sides up. The battery will pop out from its encasement.

    How I purchase this

    Sankrasan Basantia -

  17. CcA43YkuKmsFGVGl
    • Locate the black, yellow, and red wires and steadily pull them smooth if they are tangled.

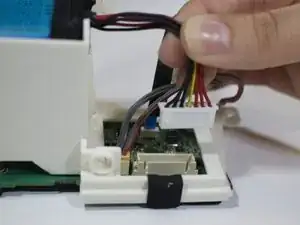

  18. H5rICxwn3YSjRaqi
    • Unravel any tangled wires or replace any damaged wires.

    • The wires should all run parallel to one another.

Abschluss

To reassemble your device, follow these instructions in reverse order.
