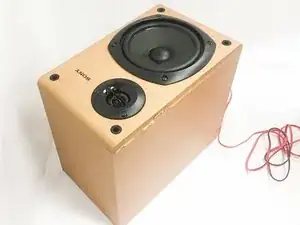

Sony SS-CCP1 Speaker Replacement

Geschrieben von: Dallas

Kommentare: 1

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 Minuten

Einleitung

This guide will show the steps for removing each speaker from the box and the procedure for removing all wires from the speakers.

Werkzeuge

Schritt 1

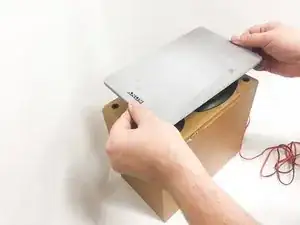

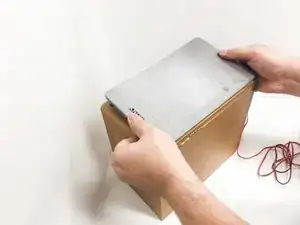

Pull screen cover from the edges for removal. This will not require much effort.

Schritt 3

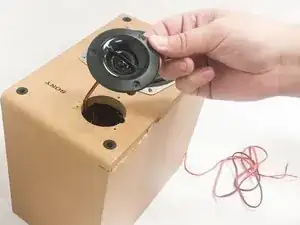

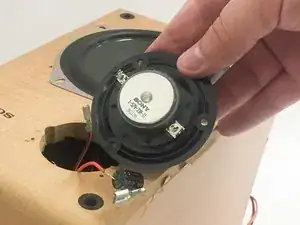

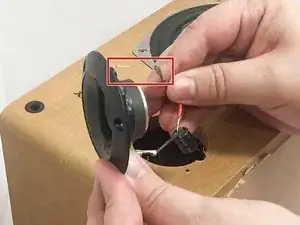

Remove the crimps from the tweeter speaker.
If its not connected too tightly the crimps can be removed by hand pressure only.
If its too tight to be removed by hand, then you can use a pair of pliers to removed the crimps.
Never remove by pulling on the cables. Always pull by the metal crimps.

Schritt 4

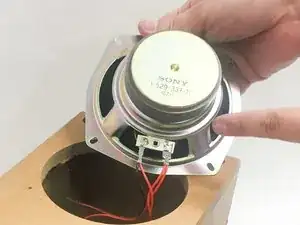

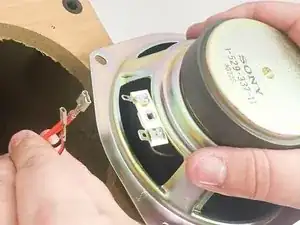

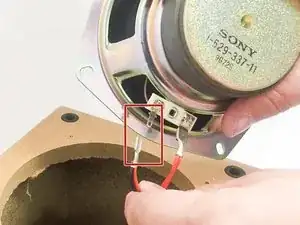

Remove the crimps from the 12cm loudspeaker.
If its not connected too tightly the crimps can be removed by hand pressure only.
If its too tight to be removed by hand, then you can use a pair of pliers to removed the crimps.
Never remove by pulling on the cables. Always pull by the metal crimps.

Schritt 5

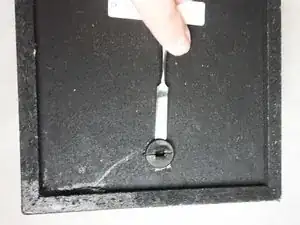

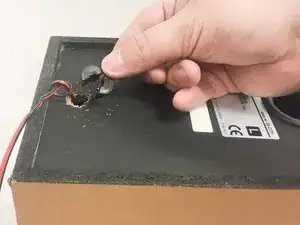

Remove the grommet using an object with a flat edge.
The grommet is not made of rubber, it is made of plastic. Be careful when removing it, as it can break easily.

Schritt 6

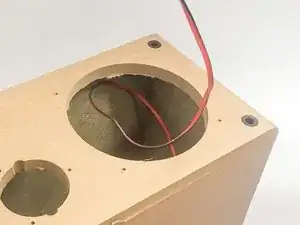

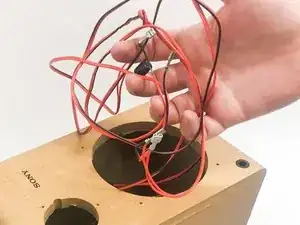

Feed the speaker cable through the front of the box.
