Sony Tablet S Charging Connector Replacement

Geschrieben von: Austin Mann
  • Kommentare: 2
Sony Tablet S Charging Connector Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

25 Minuten

Einleitung

  1. ll12lHWAifmjouYF
    ll12lHWAifmjouYF
    tamJ3Ia4jj3EFQgO

    • Ensure that the device is completely turned off before attempting a repair. The battery may still have charge; use caution touching the components.

    • Use a plastic opening tool to remove the two rubber grips on the back of the tablet.

  2. kQCr3fSjNraNAJAC

    • Remove the two 10mm Phillips #0 screws located under the grips.

  3. JeYIZPtmWUjZ14Bj
    JeYIZPtmWUjZ14Bj
    RNCDQKxZwom3Ifsw

    • Flip the tablet over and use a plastic opening tool to pry the casing away from the top of the screen. Push the back cover off.

    • There is adhesive holding the case on located at the top of the screen. Push the casing toward the top of the screen while also wiggling it back and forth.

  4. UOCBkV2OrVY1U5Nf

    • Once the casing is off, remove the nine 5mm Phillips #0 screws shown.

  5. oSVYLFFGRoFhfLXt

    • Remove the white ribbon cable by pulling the blue tab straight up out of the socket and then peeling up the tape securing it to the tablet.

    • Use caution when removing the cable, as the socket is very fragile.

  6. irqGBPHCFLXT3IHm

    • Remove the copper ribbon cable by gently using a spudger to pry it up from its socket.

    • Use caution when removing the cable, as the socket is very fragile.

  7. yorSTmfJXuZKQFrY

    • Slide the bottom grey cover piece away from the body and remove it.

    • If this piece gives resistance, use a spudger on the sides of the tablet to pry it loose.

  8. aSalnjKATAAbNYB4

    • Remove the five 4mm Phillips #000 screws.

    • Remove the two 5mm Phillips #000 screws holding the charger in place.

  9. fTbroCLxJUIWxoOp
    fTbroCLxJUIWxoOp
    XPhFLIQgSANaFfgt
    bcVTOXJgvULoIQLf

    • Position the charging port at an angle so you can thread it through the opening as you remove the black plastic cover from the back of the tablet.

    • If the cover is not coming off easily, use a plastic opening tool to pry it loose from the edges of the screen.

  10. iEQJOSYMWIbbmYV4
    iEQJOSYMWIbbmYV4
    5oZnguMxNMtHRUyF

    • Use a spudger to lift the zero insertion force connector latch for the long ribbon cable to the right of the battery, then pull the cable loose from its socket.

    • Use caution when removing the cable, as the socket is very fragile.

  11. lKJybb4RF3bJtYnZ

    • Remove the three 5mm Phillips #0 screws securing the original battery.

  12. CpmBut6CZgqdWO4J
    CpmBut6CZgqdWO4J
    YmUHhCQ6N5kaVFwT

    • Use the spudger to pop the battery loose and remove the battery.

  13. Y3jFWn2MCmyfJNVK
    Y3jFWn2MCmyfJNVK
    MZQGGFOoSK1lWGVG

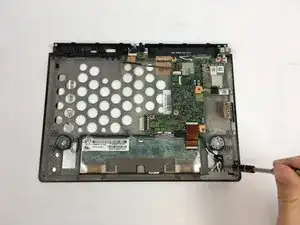

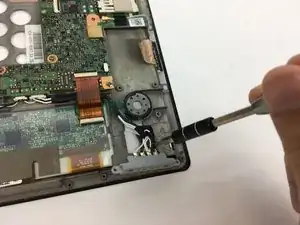

    • Unscrew the single 5mm Phillips #000 screw.

  14. WEBpBtct4bWPQRLs
    WEBpBtct4bWPQRLs
    hkkNcMentylXyxy5

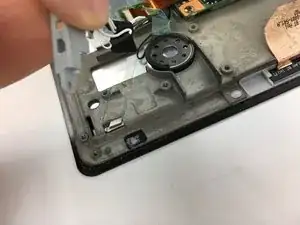

    • Peel up the tape securing the assembly.

  15. qjL2l1rTtBLOdT3q
    qjL2l1rTtBLOdT3q
    y3PEBUVH2MNG3aCO
    x5YDryLw6CQLfZaG

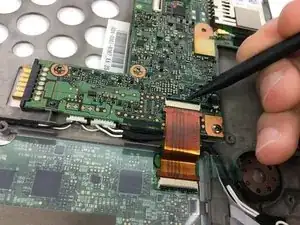

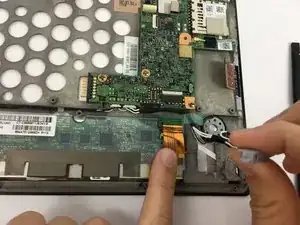

    • Use a spudger to disengage the zero insertion force latch securing the copper ribbon cable.

    • Pull away the ribbon cable.

    Whereto buy spares

    Abraham Sibilibili Zulu -

  16. FlOEOHAYDwUySIVI
    FlOEOHAYDwUySIVI
    RxLlBuiOTUfNeOtd

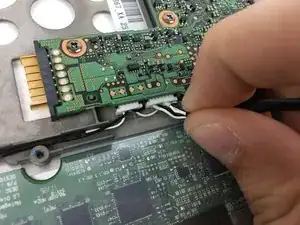

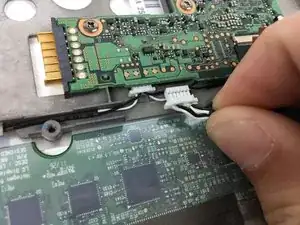

    • Disconnect the charging assembly from the pin connector.

    • Pull on it very gently; the socket is very fragile.

  17. 4ILmJETW4XbxLpOK

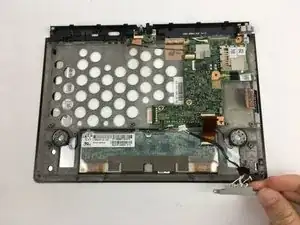

    • Remove the assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
