Sony Tablet S Rear Camera Replacement

Geschrieben von: Austin Mann
  • Kommentare: 0
Sony Tablet S Rear Camera Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

  1. RSCcBbsbROA1Qjsk
    RSCcBbsbROA1Qjsk
    gyU4FnhYGIAyfaDB

    • Ensure that the device is completely turned off before attempting a repair. The battery may still have charge; use caution touching the components.

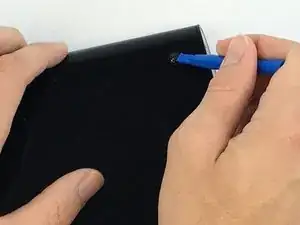

    • Use a plastic opening tool to remove the two rubber grips on the back of the tablet.

  2. YoJDHBQsRxeXbfy6

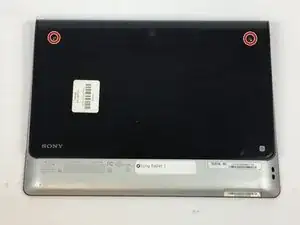

    • Remove the two 10mm Phillips #0 screws located under the grips.

  3. GTrvwoYKGb1ieT5U
    GTrvwoYKGb1ieT5U
    SFLeHblUOQDLhUC3

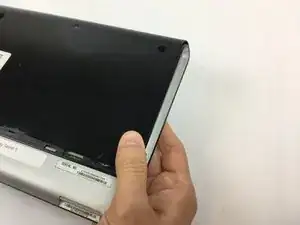

    • Flip the tablet over and use a plastic opening tool to pry the casing away from the top of the screen. Push the back cover off.

    • There is adhesive holding the case on located at the top of the screen. Push the casing toward the top of the screen while also wiggling it back and forth.

  4. BxgKj2JmIqwyDHJW

    • Remove the copper ribbon cable by gently using a spudger to pry it up from its socket.

    • Use caution when removing the cable, as the socket is very fragile.

  5. LobJ53EuHkpNE62O
    LobJ53EuHkpNE62O
    yKlS2tIeYrDWEZut

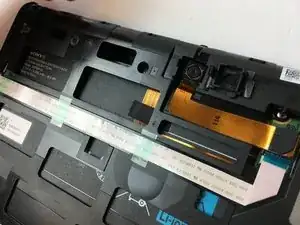

    • Use a finger or a spudger to pull on camera housing.

  6. xFbpOPhTpokmOQCe

    • Remove the assembly from the plastic shielding.

Abschluss

To reassemble your device, follow these instructions in reverse order.
