Sony VAIO PCG-3E2L Hard Drive Replacement

Geschrieben von: Chengyang Chen
  • Kommentare: 0
Sony VAIO PCG-3E2L Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will aid readers to replace or upgrade Hard Drive of the device when the Hard Drive is not functioning properly.

  1. 6Cpul1UiVFMbDThS

    • Using a #00 Phillips screwdriver, remove the screw

  2. kaVPPEALPnZorifD

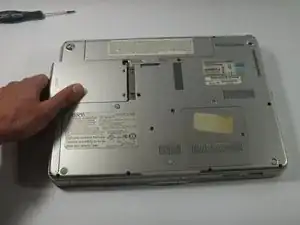

    • Remove the cover

  3. hZFNF5bLNVAG2ioT

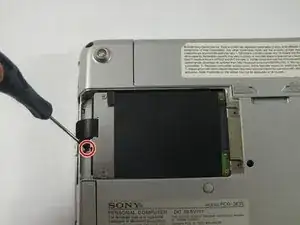

    • Using a #00 Phillips screwdriver, remove the screw

  4. aH2A2aglHuUkZBI6
    aH2A2aglHuUkZBI6
    Ji5lf4IZQJnTVb4C

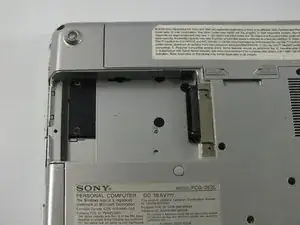

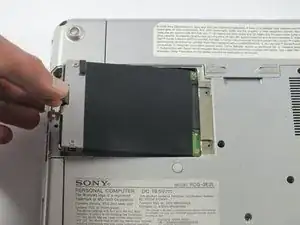

    • Grab the black plastic handle and pull the hard drive out slowly.

    • Only pull the hard drive horizontally. Do not lift the hard drive vertically

  5. EPLta4OWOpWBTixJ
    EPLta4OWOpWBTixJ
    TGUbOWEUXCDtMest

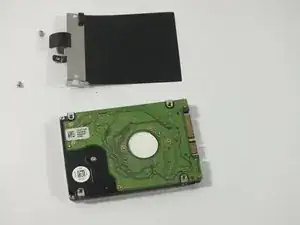

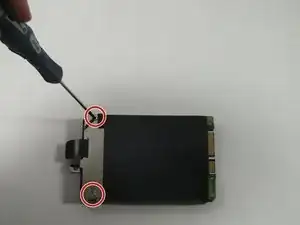

    • Using a #00 Phillips screwdriver, remove the screw

Abschluss

To reassemble your device, follow these instructions in reverse order.
