Sony VAIO PCG-933A DVD Drive Replacement

Turn the laptop upside down so that the top is sitting on a flat surface.

If you are looking at the bottom of the laptop the battery is located on the front right side of the laptop; the opposite side from the floppy disk drive.

As shown by the arrow, slide the plastic cover up and then pull out and downwards.

You should now be able to pull the battery out.

Remove the four 16 mm screws bordering the edge of the laptop using a Phillips #0 screwdriver.

Remove the 4mm screw on the right rear side of the laptop next to the audio ports using a Phillips #0 screwdriver.

Flip the computer so the key board is facing up.

Slide the blue speaker grille (located above the keyboard) to the right and gently pull upward. The grille will still be connected by a white electrical strip.

Carefully pull out the white electrical strip. By doing this you will remove the speaker grille.

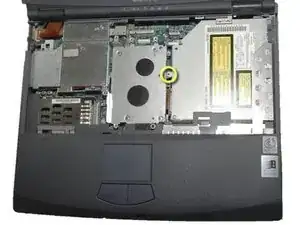

Remove the 4mm screw in the center using a Phillips screwdriver.

Carefully and slowly pull the green strip straight up (away from the laptop) to disconnect it. Make sure not to pull too hard to avoid breaking.

The keyboard can now be removed.

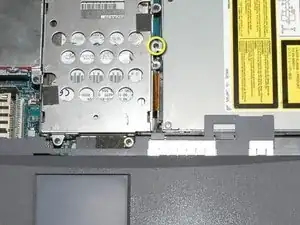

Remove the 4mm Phillips screw that connects the hard drive cage to the DVD drive.

Carefully remove the copper wire strip.

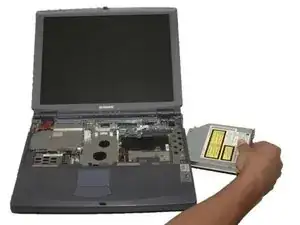

Slide the DVD drive out.
