This guide shows the repairing and replacing of the keyboard.
Werkzeuge
-
-

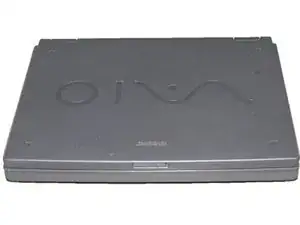

Turn the laptop upside down so that the top is sitting on a flat surface.
-

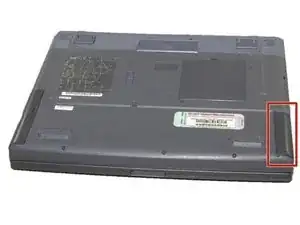

If you are looking at the bottom of the laptop the battery is located on the front right side of the laptop; the opposite side from the floppy disk drive.
-
-
-

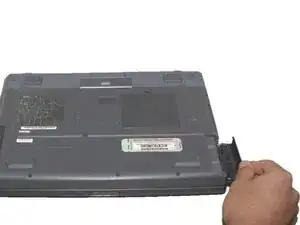

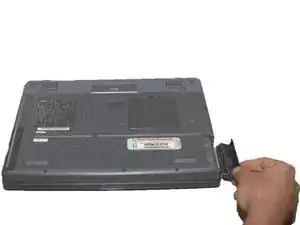

As shown by the arrow, slide the plastic cover up and then pull out and downwards.
-

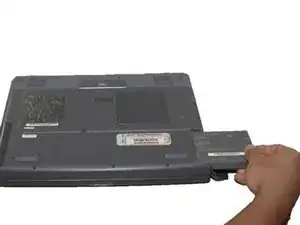

You should now be able to pull the battery out.
-
-
-

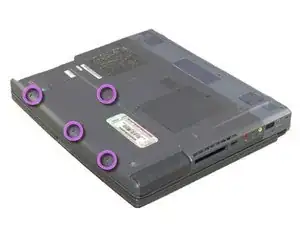

Remove the four 16 mm screws bordering the edge of the laptop using a Phillips #0 screwdriver.
-
-
-

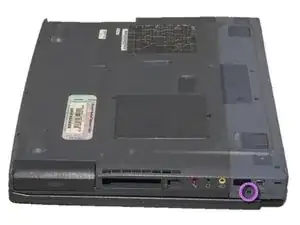

Remove the 4mm screw on the right rear side of the laptop next to the audio ports using a Phillips #0 screwdriver.
-
-
-

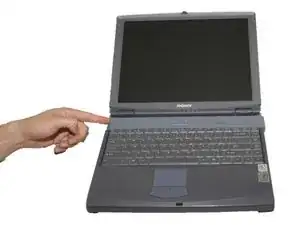

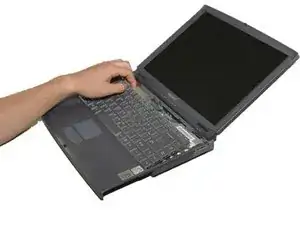

Slide the blue speaker grille (located above the keyboard) to the right and gently pull upward. The grille will still be connected by a white electrical strip.
-

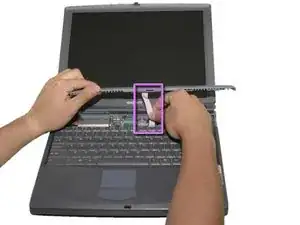

Carefully pull out the white electrical strip. By doing this you will remove the speaker grille.
-
-
-
Remove the 4mm screw in the center using a Phillips screwdriver.
-

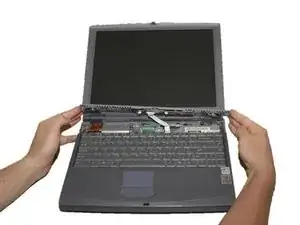

Carefully and slowly pull the green strip straight up (away from the laptop) to disconnect it. Make sure not to pull too hard to avoid breaking.
-

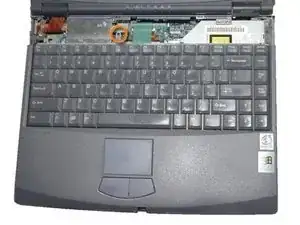

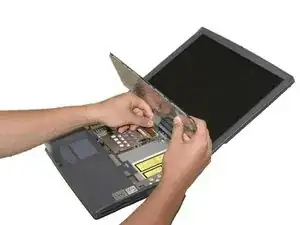

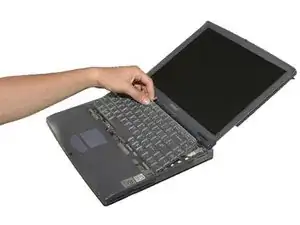

The keyboard can now be removed.
-

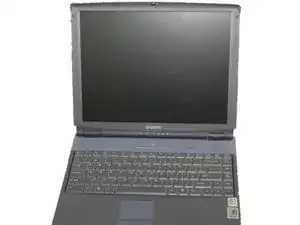

To reassemble your device, follow these instructions in reverse order.
