Einleitung
How to replace or add memory to your Sony VAIO PCG-933A laptop.
Werkzeuge
-
-
Turn the laptop upside down so that the top is sitting on a flat surface.
-
If you are looking at the bottom of the laptop the battery is located on the front right side of the laptop; the opposite side from the floppy disk drive.
-
-
-

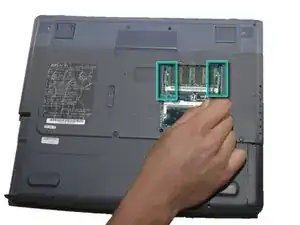

As shown by the arrow, slide the plastic cover up and then pull out and downwards.
-

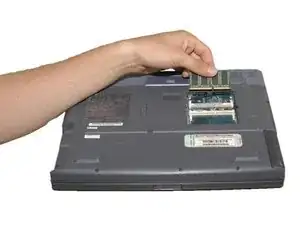

You should now be able to pull the battery out.
-
-
-

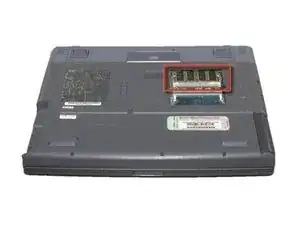

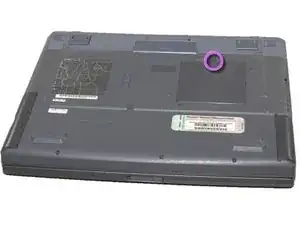

Remove the 4mm Phillips screw that holds the small panel in the center of the laptop in place.
-
Then remove the panel covering the RAM.
-

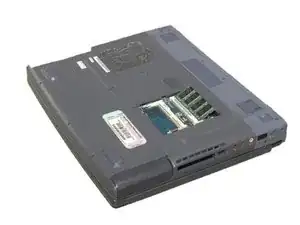

The RAM should now be visible.
-
-
-
Release the plastic switches on each side of the stick of RAM.
-
Carefully slide the stick of RAM out at an angle.
-
To reassemble your device, follow these instructions in reverse order.
