Sony VAIO SVE14AJ16L I/O Card Replacement

Geschrieben von: Carlos Landa
  • Kommentare: 0
Sony VAIO SVE14AJ16L I/O Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

If you notice that what you input into a computer is not outputting correctly, it may be that your I/O card needs replacing. This guide will walk you through how to replace the Sony VAIO SVE14AJ16L I/O Card on your laptop.

  1. tZ1LoRWexSbeSGWy

    • Flip the laptop so the bottom is facing you.

  2. TXsMLLUi3CAdGKEl
    TXsMLLUi3CAdGKEl
    cpBHBdEpdApjMSTH

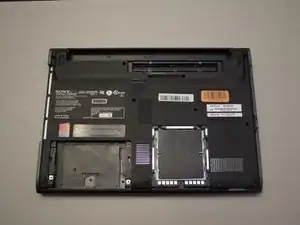

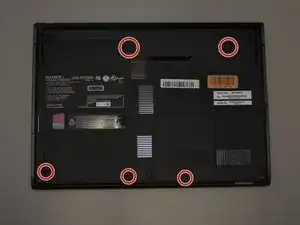

    • Remove the battery, hard drive cover, and RAM cover.

    • Unscrew the two Phillips screws to remove the hard drive from the computer

    • If you're unsure how to remove the covers for the hard drive, battery, and RAM, refer to the guides on replacing these components.

  3. IYhbQ3BsIG3tnsn5
    IYhbQ3BsIG3tnsn5
    ji4a6oFNWh4pTCn4
    XyI5bYIGugdGGCXY

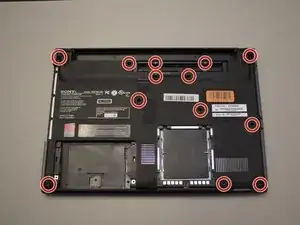

    • Remove the 13 Phillips #0 screws.

    • Make sure you have an organization system to remember which screws go where, as the majority are different sizes! The iFixit Magnetic Project Mat is an awesome tool for this exact reason!

    • Carefully pry apart the clipped-on bottom panel of the laptop to expose the internals using the iFixit opening tool.

  4. xTfhpUX4FpiCKRxR

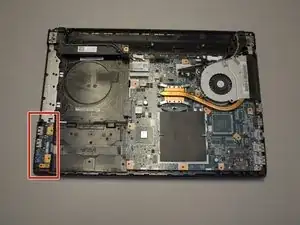

    • Locate the I/O card in the bottom left hand corner (or upper right hand corner depending on which direction you have the laptop) of the case.

  5. KyjTOLI1Wfhpg4kv
    KyjTOLI1Wfhpg4kv
    hsDDvdL4YD5EYJUW
    Br4Y3bHWtTw2nHjO

    • Carefully slide the black retainer bar towards the ribbon cable with a nylon supdger until parallel.

    • Carefully pull the ribbon cable out of its socket with a pair of tweezers.

  6. cnyOADiextQLXVr5
    cnyOADiextQLXVr5
    EIh1pyUuWtysJVkE
    nJ1wEEFLBToDi6xp

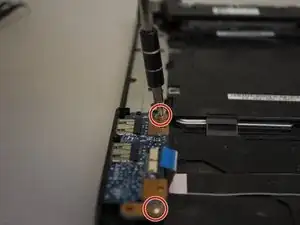

    • Remove the two screws on the corners of the I/O card using a Phillips #0 screwdriver.

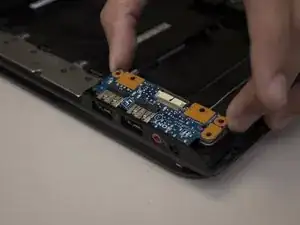

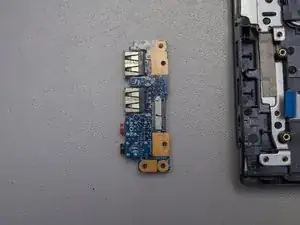

    • Lift the edge of the card up and away from the laptop, then pull it away from the side ports.

Abschluss

To put Humpty Dumpty together again, follow these instructions in the reverse order.
