Sony VAIO SVE14AJ16L RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

RAM replacement steps for a Sony VAIO SVE14AJ16L laptop.

  1. bHNautrsdIbCpHwb

    • Turn your laptop off before starting.

    • Turn the laptop upside down onto the closed lid so that the bottom is facing you.

  2. 2wJ4A2D3ws3GwABI
    2wJ4A2D3ws3GwABI
    RWL1EFJjKP1JkUUu

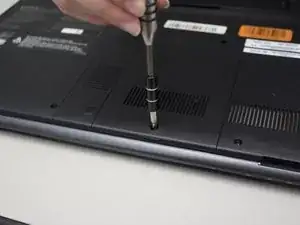

    • Locate and remove the lone screw on the RAM cover with a Phillips #0 head screw driver.

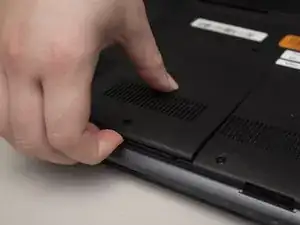

    • Carefully pry the RAM cover up.

    • There will be some resistance, so use strength and not speed to remove the cover.

  3. SiB4qsKZXRIJYnY6
    SiB4qsKZXRIJYnY6
    VQGc5QiZwsaR6Sx4
    i3sHvEembMQRKAxk

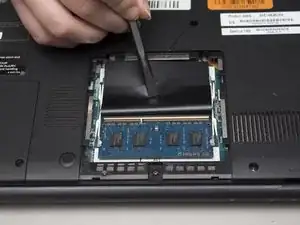

    • With the cover removed, peel back the black protective plastic to expose one of the two RAM sticks.

    • Make sure not to touch any part of the blue board itself, and only handle the stick from it's edges.

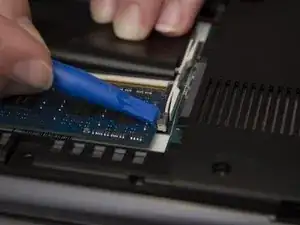

    • Gently, but firmly push back the two side anchors that hold in the RAM using either an iFixit Opening Tool or your fingernails.

  4. JINib6iwYdSkcbvi
    JINib6iwYdSkcbvi
    njV4TUgDWwTXTZTH

    • Once both anchors are released from the RAM stick, the stick will spring up at an angle

    • Finally, carefully pull the RAM stick away from the laptop at the same angle it is sitting at.

Abschluss

To reassemble your device, follow these instructions in reverse order.
