The hard drive is the major internal data storage device of the VAIO VGN-FW590. Without a working hard drive, the laptop will not function properly. This guide will demonstrate how to identify, remove, and replace the hard drive without damaging the device.
Werkzeuge
Ersatzteile
-
-
Set the laptop upside down on your work area.
-

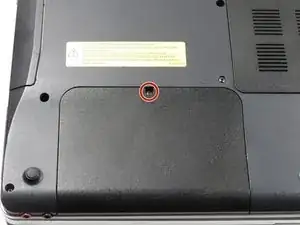

Locate the hard drive under the panel on the bottom left side.
-
-
-

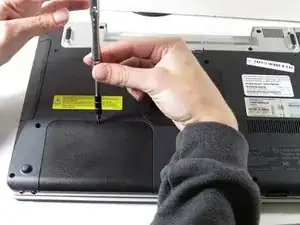

Remove one 7.7 mm Phillips #1 screw securing the panel to the laptop.
-
Slide the panel down to remove it from the computer.
-
-
-

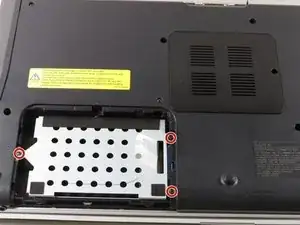

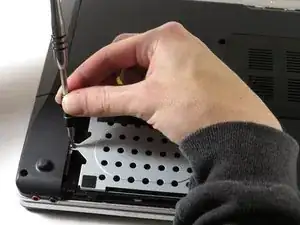

Remove three 7.7 mm Phillips #1 screws securing the hard drive to the laptop.
-
Slide the hard drive to the left to disconnect it from the motherboard.
-
Remove the hard drive by lifting it out of the computer.
-
To reassemble your device, follow these instructions in reverse order.
