Sony VAIO VPC-EB33FM RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

3 - 5 Minuten

Einleitung

This guide will inform readers on how to safely uninstall the RAM components of the Sony VAIO VPC-EB33FM laptop.

  1. wvUSIesSQbsqDMMK
    wvUSIesSQbsqDMMK
    DtlFeLmnD5IG3mxU

    • Power down the laptop by pressing the power button.

    • Turn the laptop onto its backside.

  2. ufVx5XYy1CtgNQRZ

    • To release the battery, hold both the release button and the unlock button at the same time.

  3. yYwE3QtOEwgSF4vq
    yYwE3QtOEwgSF4vq
    YdV6dv2Z1WCFb6in

    • Remove the battery out from the notch while continuing to hold the release button.

  4. PAAykvrXKNPFgvYP
    PAAykvrXKNPFgvYP
    OmUoG63HFNRAQJgT
    cVH1LaqiTpONGo6X

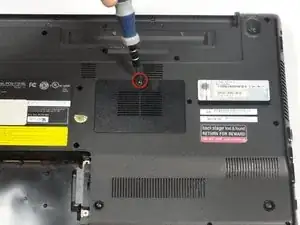

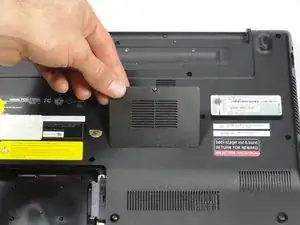

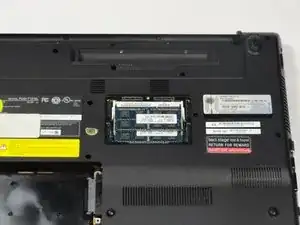

    • Remove the one screw with a Phillips #00 screwdriver.

    • The screw cannot be removed from the RAM casing cover.

  5. KIoh3MplTFatO2Sb
    KIoh3MplTFatO2Sb
    vNXtFhXUmXOdQWON

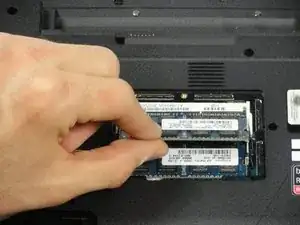

    • Pull the two retaining arms away from the center of the RAM chip.

    • The RAM will make a "pop" sound and the RAM stick will rise for ease of handling.

  6. WwQIJJYmlMjBCrMn
    WwQIJJYmlMjBCrMn
    PypebENKvwBDoXyN
    PCrHDkL2PN5kYAR2

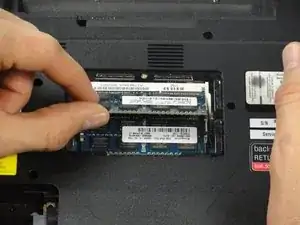

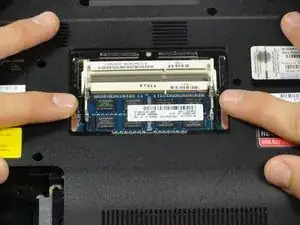

    • Pull the RAM stick out of its socket.

    • To remove the second stick of RAM, repeat steps six and seven.

    • When installing RAM, make sure sticks are firmly in place or the computer will not register them.

Abschluss

To reassemble your device, follow these instructions in reverse order.
