Sony VAIO VPCEE26FX Hard Disk Drive Replacement

Geschrieben von: Christopher Hover
  • Kommentare: 0
Sony VAIO VPCEE26FX Hard Disk Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

3 Minuten

Einleitung

This guide shows how to remove/replace the hard disk drive on the Sony VAIO VPCEE26FX laptop computer.

  1. TSEHqC46BPmC6GGC
    TSEHqC46BPmC6GGC
    ArWbQXBQCFWRGq4M

    • Ensure that the laptop is powered off before disconnecting the battery.

    • Flip the laptop over so the underside of the laptop is facing up.

  2. HKesqTQTb5exyA2b
    HKesqTQTb5exyA2b
    sfPsLYO5HGUXOZYu

    • Slide the two tabs towards each other until the battery disconnects slightly from its position.

    • Carefully lift the battery out of its position away from the laptop.

    • The battery is not pictured here, since it is missing from this particular device.

  3. NyRCKAmVUit2eUHX
    NyRCKAmVUit2eUHX
    fVGJSjQ5MgcfVWTs

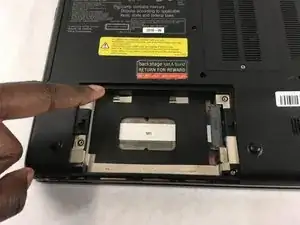

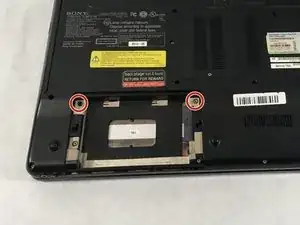

    • Using a JIS #0 screwdriver, remove the two 4mm screws securing the hard drive cover to the laptop.

    • Lift the hard drive up and out of its place.

    • The drive cover and hard drive are not pictured. They are both missing from this particular device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
