Sony VAIO VPCEE26FX Keyboard Replacement

Geschrieben von: Christopher Hover
  • Kommentare: 0
Sony VAIO VPCEE26FX Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

This guide shows how to remove/replace the keyboard on the Sony VAIO VPCEE26FX laptop computer.

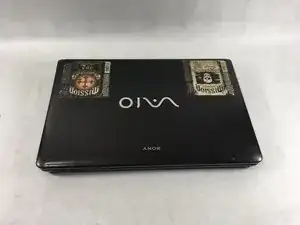

  1. TSEHqC46BPmC6GGC
    TSEHqC46BPmC6GGC

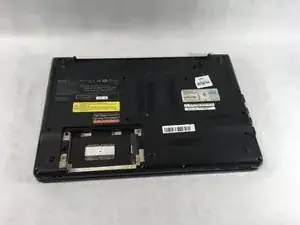

    ArWbQXBQCFWRGq4M

    • Ensure that the laptop is powered off before disconnecting the battery.

    • Flip the laptop over so the underside of the laptop is facing up.

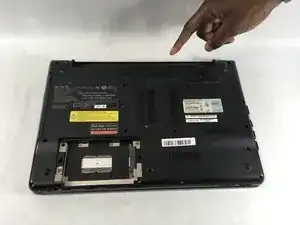

  2. HKesqTQTb5exyA2b
    HKesqTQTb5exyA2b

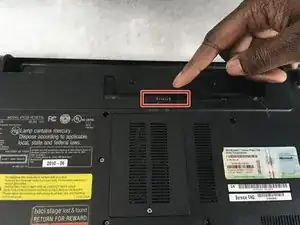

    sfPsLYO5HGUXOZYu

    • Slide the two tabs towards each other until the battery disconnects slightly from its position.

    • Carefully lift the battery out of its position away from the laptop.

    • The battery is not pictured here, since it is missing from this particular device.

  3. BVRgtyMkDoJUoVxF
    BVRgtyMkDoJUoVxF

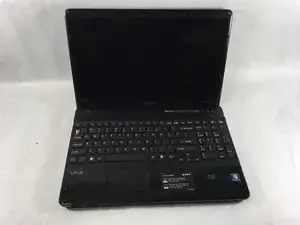

    Bufu5u3DEYLKJeZM

    • Flip the laptop back over so it is face up.

    • Open up the laptop.

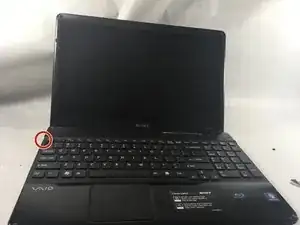

  4. PLGCv6LtK5vAsILY

    • Using a plastic opening tool, pry along the seam between the keyboard and case to help in separating the two.

    • Continue to lift up gently using the plastic opening tool until the keyboard begins to separate from the case.

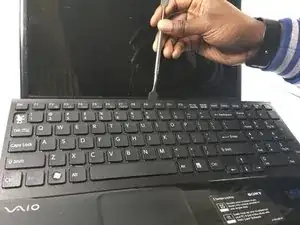

  5. xm2URFLfcELoc1Nj
    xm2URFLfcELoc1Nj

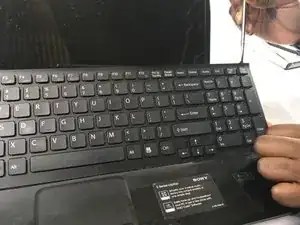

    gexZZKNJYvVALYkQ

    • Continue lifting up and moving down starting on the left side of the keyboard moving towards the right side of the computer.

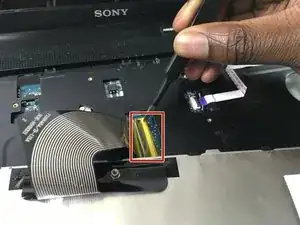

  6. LjTbSdDkmSdiMgHI
    LjTbSdDkmSdiMgHI

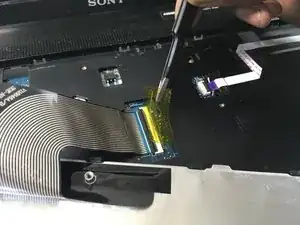

    p3UdegBMKPvFSOaK

    • Carefully tilt the top of the keyboard towards you ensuring the ribbon cable is not under too much tension.

    • Use a pair of tweezers to help remove the plastic adhesive film covering the adapter/port for the ribbon cable.

  7. dWejqvVBaj1TNS22

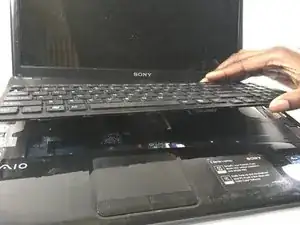

  8. BrkpEKg6UhjL5TSd

    • Lift the keyboard up and away from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
