Sony VAIO VPCEE26FX Optical Drive Replacement

Geschrieben von: Christopher Hover
  • Kommentare: 0
Sony VAIO VPCEE26FX Optical Drive Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

2 Minuten

Einleitung

This guide shows how to remove/replace the CD-ROM/optical drive on the Sony VAIO VPCEE26FX laptop computer.

  1. TSEHqC46BPmC6GGC
    TSEHqC46BPmC6GGC
    ArWbQXBQCFWRGq4M

    • Ensure that the laptop is powered off before disconnecting the battery.

    • Flip the laptop over so the underside of the laptop is facing up.

  2. HKesqTQTb5exyA2b
    HKesqTQTb5exyA2b
    sfPsLYO5HGUXOZYu

    • Slide the two tabs towards each other until the battery disconnects slightly from its position.

    • Carefully lift the battery out of its position away from the laptop.

    • The battery is not pictured here, since it is missing from this particular device.

  3. Us5UFl4hWCrbpoke

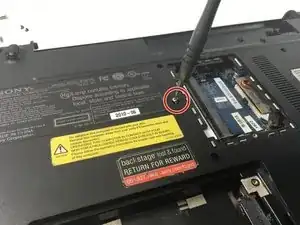

    • Use a JIS #0 screwdriver to remove the 4mm screw from its place.

  4. 4BIY3ey3DUOlwGCG
    4BIY3ey3DUOlwGCG
    Yr2RLLBmslUc1xHb

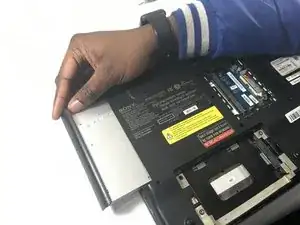

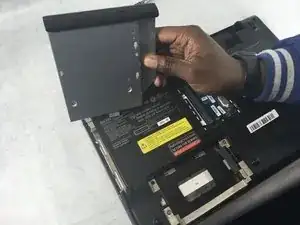

    • Remove the optical drive gently away from its holder on the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
