Sony VAIO VPCF 132FX Bottom Case Replacement

Geschrieben von: Marjorie
  • Kommentare: 0
Sony VAIO VPCF 132FX Bottom Case Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

Keine Schätzung

Einleitung

  1. cMKWkHBYiiYHmDTx

    • Remove all wires then flip the laptop

  2. iFO2eaIeZxeSfeaD
    iFO2eaIeZxeSfeaD
    wRJQJiWj2PycpYt6

    • Remove the battery

  3. ILVVXSlFAjhPY24F
    ILVVXSlFAjhPY24F
    pXfOCTDRZQcDUPrU
    m6NERs1VHFohrSyo

    • Flip the Laptop, and unscrew the RAM cover.

  4. vaUxmt1xbyUDHeJo
    vaUxmt1xbyUDHeJo
    UEid3Zua2MDgwcue

    • Unlock the RAM by pulling the locks outward.

    • You'll know if its unlocked if it flips up in 45 degrees.

  5. AX62VuEN2RkTBDLG
    AX62VuEN2RkTBDLG
    oGOtvOytkfLPeOCg

    • Pull the outer RAM. Repeat Step 4 and 5 for the other RAM.

    • When returning, put the RAM back in at 45 degree angle, NOT 90 degree angle.

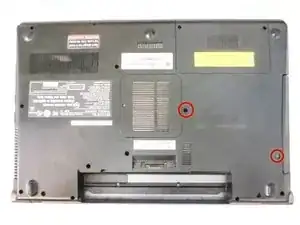

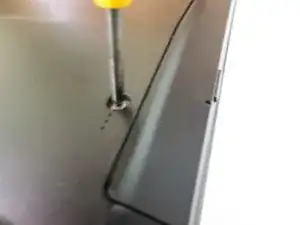

  6. TLsSQnfXsctr1I15
    TLsSQnfXsctr1I15
    pZSZEDnfornHfpVK

    • Remove the 2 screws holding the CD/DVD Drive.

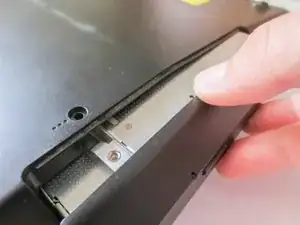

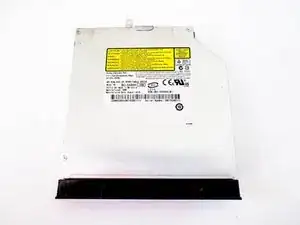

  7. JWQ3jUo2jgNLxJL2
    JWQ3jUo2jgNLxJL2
    gWkLKyMtGa6tMIMB

    • Slide the CD/DVD Drive out.

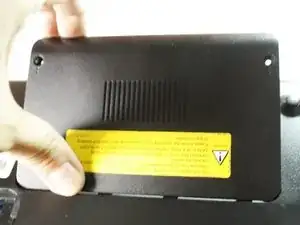

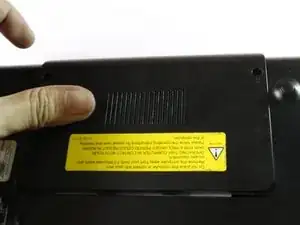

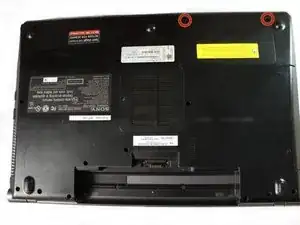

  8. oNSL443Q2icEZefD
    oNSL443Q2icEZefD
    pbUYCHQGDVCWr4cd
    wEUuZSPtBVhkCh6I

    • Remove the screws.

    • Slide the HD cover outward then lift.

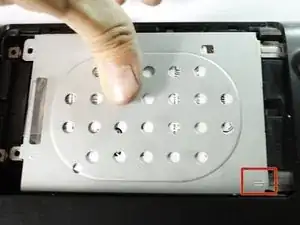

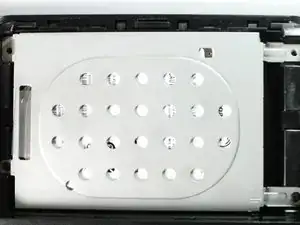

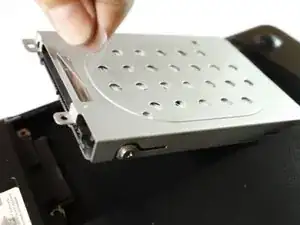

  9. DCO2wVFvLmpe4VWo
    DCO2wVFvLmpe4VWo
    Vg3Q34HB4sqQVPAt
    JliiiBLsqsX1MBiv

    • Remove the screws.

    • Slide to where the arrow points to unlock the HD.

    • Hold it at the side. Never touch the circuits.

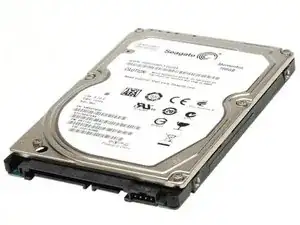

  10. EpcFOJaI4YXGxEQi

    • Remove the 4 screws at the side and remove the HDD/SSD

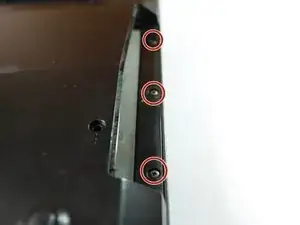

  11. he15obiNXjoNTpbe
    he15obiNXjoNTpbe
    TVJpcCqSBLLUQNRY

    • Remove all the other screws.

    • Dont forget the 3 screws after you remove the CD/DVD Drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
