Sony VAIO VPCF 132FX Media Board Replacement

Geschrieben von: Marjorie
  • Kommentare: 2
Sony VAIO VPCF 132FX Media Board Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

3 - 5 Minuten

Einleitung

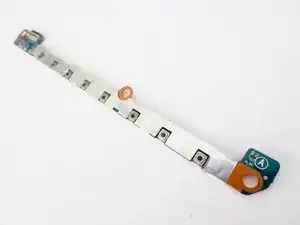

This will guide you in replacing the Media Board of a Sony Vaio VPCF 132FX

  1. cMKWkHBYiiYHmDTx

    • Remove all wires then flip the laptop

  2. iFO2eaIeZxeSfeaD
    iFO2eaIeZxeSfeaD
    wRJQJiWj2PycpYt6

    • Remove the battery

  3. RURknFkKpDQPOKP5

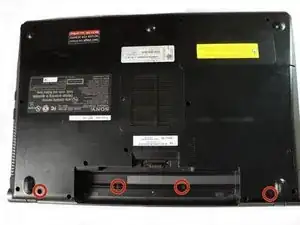

    • Remove the screws and flip it back.

    you need to remove also all the screws from the bottom sides in order to detach the panel!

    Dimitrios Vamv -

  4. DP4nTMAJj6WjKbsW
    DP4nTMAJj6WjKbsW
    JwfMiW6HbpqQuVRG
    3rVqBV1aeXDTd2Lq

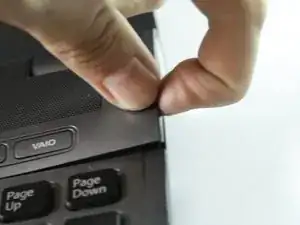

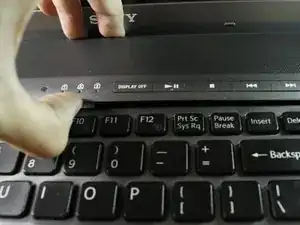

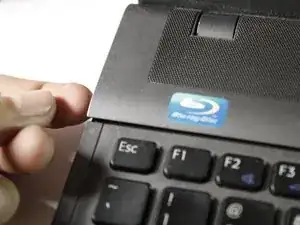

    • Lift the screen and slide your nail or any flat plastic to the side of the cover to unclip it.

    • Slide from the sides towards the center.

  5. mJiJPpNtBTchQdVP

    • Gently remove the wire of the Power Button.

  6. ViOrxuJWLs1Z1gER
    ViOrxuJWLs1Z1gER
    UKx4QAYnsxgFiSF2
    DWgLRWZ6jxQjvTM5

    • Unlock the Lock.

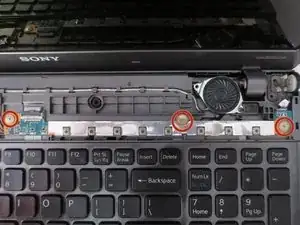

    • Unscrew the 3 Flat screws and remove the Media Board.

    • You may skip this step if replacing the Power Button.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Marjorie

Mitglied seit: 23/12/13

2246 Reputation

Ein Kommentar

What are the functions of the media board? My vaio vgn-fw170j won't power up (no LEDS on the power switch, or anywhere else, no fan, nothing). Verified that MoBo has 19.5 VDC on the board. Replaced MoBo and CPU, still no response. Since power button plugs into Media Board, figured it might be failed - any idea if this could be the cause?

course2kid -
