Sony VAIO VPCF 132FX Power Button Replacement

Geschrieben von: Marjorie
  • Kommentare: 4
Sony VAIO VPCF 132FX Power Button Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

3 - 5 Minuten

Einleitung

This will guide you in replacing the Power Button of a Sony VAIO VPCF 132FX.

  1. cMKWkHBYiiYHmDTx

    • Remove all wires then flip the laptop

  2. iFO2eaIeZxeSfeaD
    iFO2eaIeZxeSfeaD
    wRJQJiWj2PycpYt6

    • Remove the battery

  3. RURknFkKpDQPOKP5

    • Remove the screws and flip it back.

    you need to remove also all the screws from the bottom sides in order to detach the panel!

    Dimitrios Vamv -

  4. DP4nTMAJj6WjKbsW
    DP4nTMAJj6WjKbsW
    JwfMiW6HbpqQuVRG
    3rVqBV1aeXDTd2Lq

    • Lift the screen and slide your nail or any flat plastic to the side of the cover to unclip it.

    • Slide from the sides towards the center.

  5. mJiJPpNtBTchQdVP

    • Gently remove the wire of the Power Button.

  6. ViOrxuJWLs1Z1gER
    ViOrxuJWLs1Z1gER
    UKx4QAYnsxgFiSF2
    DWgLRWZ6jxQjvTM5

    • Unlock the Lock.

    • Unscrew the 3 Flat screws and remove the Media Board.

    • You may skip this step if replacing the Power Button.

  7. HFJwRmXqTxXsbGlI

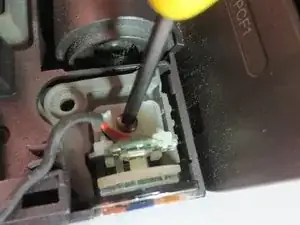

    • Unscrew the Power button.

  8. x1L5BDWQLhMIBcOp
    x1L5BDWQLhMIBcOp
    6a1nTfKcXUpgBiDd
    aQLuV6uvRvLJiEbM

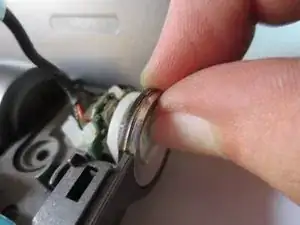

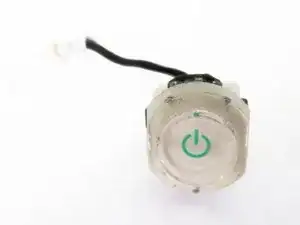

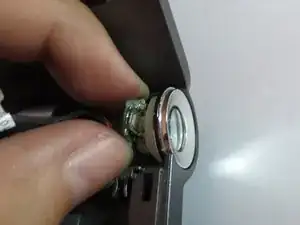

    • While pulling the button upwards and towards the left (left fingers), push the button inwards (right fingers) at the same time to remove it from its place.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Marjorie

Mitglied seit: 23/12/13

2246 Reputation

3 Kommentare

My power on button was broken where the part you depress was detached from the little circuit board because the plastic holder was broke. Rather than buy a new switch assembly I simply lined everything up in the case and use a liberal amount of RTV to hold everything in place. The RTV is flexible enough to allow the plunger to depress the switch on the board and then spring back into place. It has work great this way since I fixed it six months ago.

Mark -

I need a similar or identical part for my Sony VGN-TT130N notebook. Where can I find and purchase this power button assembly?

Gabriel Solnica -

Did you ever find where to buy the part?

Gina Helton -
