Sony Vaio Fit 13A Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

Replacing the battery in your Sony Vaio Fit 13A laptop is one of the easiest repairs you can attempt. With minimal technical knowledge you will be able to fix any battery related issues you may be having.

  1. D6cAKHCfKMm5Sv3N
    D6cAKHCfKMm5Sv3N
    52OGHCZRtjJ2KBGZ

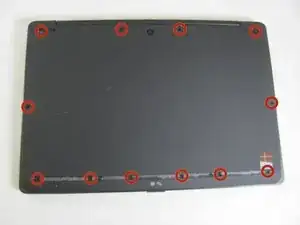

    • Starting with the laptop top-down, locate and remove the twelve 1mm Phillips #0 screws securing the back cover to the main body of the computer.

  2. 2QJJsayImbYSlPXn
    2QJJsayImbYSlPXn
    lynJEslTOeB1nhbS

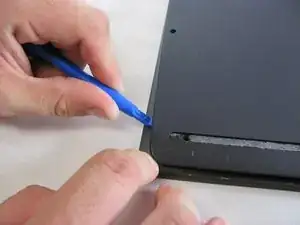

    • Use the Plastic Opening Tools or Metal Spudger to carefully loosen back cover from the body of the computer.

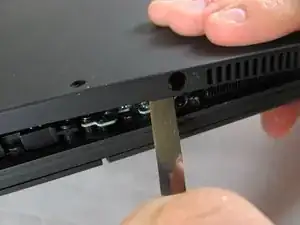

    • Be sure to avoid headphone jack when removing back cover by lifting cover away from computer and up.

  3. owZAOwECDQ6eqVxb

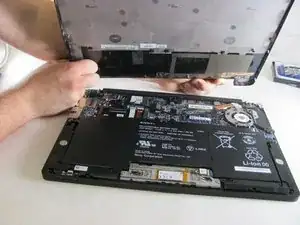

    • Lift off back cover to access inner components of computer.

  4. FcfjvW6a3vy2NvQn
    FcfjvW6a3vy2NvQn
    jIaSfm2TDDXLXePc

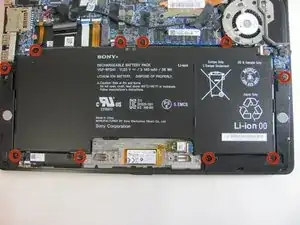

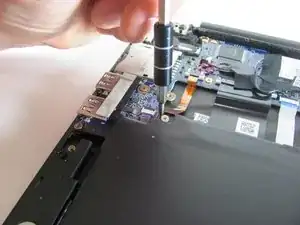

    • Locate and remove the ten 1mm Phillips #0 screws that are securing the battery in place.

  5. UNd4fLmw2JFRBNQG
    UNd4fLmw2JFRBNQG
    WQLwMdcGENPJICcs

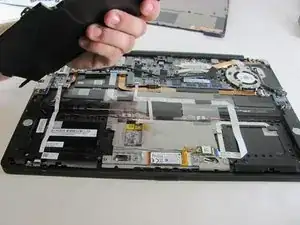

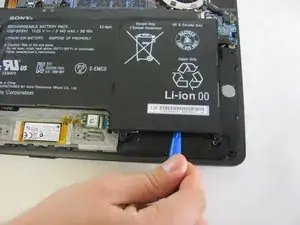

    • Remove the battery with the Plastic Opening Tool by placing the tool between the battery and the computer and cautiously prying it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
