Sony Vaio Fit 13A Wireless Card Replacement

Geschrieben von: Alex Prange
  • Kommentare: 1
Sony Vaio Fit 13A Wireless Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

  1. D6cAKHCfKMm5Sv3N
    D6cAKHCfKMm5Sv3N
    52OGHCZRtjJ2KBGZ

    • Starting with the laptop top-down, locate and remove the twelve 1mm Phillips #0 screws securing the back cover to the main body of the computer.

  2. 2QJJsayImbYSlPXn
    2QJJsayImbYSlPXn
    lynJEslTOeB1nhbS

    • Use the Plastic Opening Tools or Metal Spudger to carefully loosen back cover from the body of the computer.

    • Be sure to avoid headphone jack when removing back cover by lifting cover away from computer and up.

  3. owZAOwECDQ6eqVxb

    • Lift off back cover to access inner components of computer.

  4. R6PQ3SLiY2ZTpUgS
    R6PQ3SLiY2ZTpUgS
    RWkcbMXAKjZuUdRW
    NyJYHi1knWetdgZi

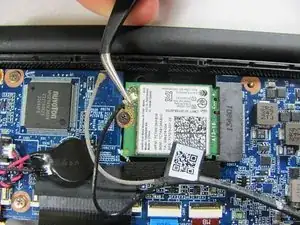

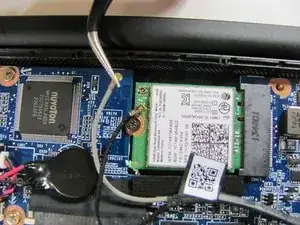

    • Use a pair of tweezers to gently disconnect the two antenna cables.

  5. ntAXZiKGk5BfXmt1
    ntAXZiKGk5BfXmt1
    b21vROuENofWhFKJ

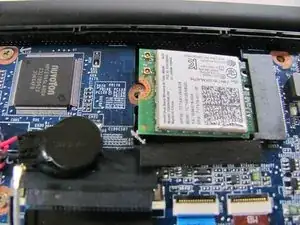

    • Locate and remove the single 1mm Phillips #0 screw that is securing the wireless card to the motherboard.

  6. pw13YpOxTJsYWPYn
    pw13YpOxTJsYWPYn
    DNJwU6bl3dUyfZNZ

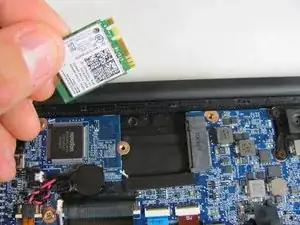

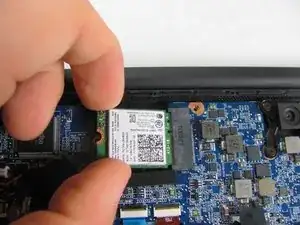

    • Gently grasp wireless card with two fingers and pull away from motherboard to the left.

    • Do not pull the wireless card up when removing it. This could snap the connections.

    Hi,

    my own and I'm happy with the Sony VAIO SVF15N1C5E FLIP i7-4500U laptop.

    Could you please advise me if it is possible to replace the original WiFi card with a new dual WiFi with bluetooth 5 series so that it works?

    Thank you for answer.

    Dušan Kovalský

    WhatsApp: https://api.whatsapp.com/send?phone=4207...

    dusan.kovalsky -

Abschluss

To reassemble your device, follow these instructions in reverse order.
