Sony Vaio Fit SVF15N26CXB Fan Replacement

Geschrieben von: Althea McDavid
  • Kommentare: 0
Sony Vaio Fit SVF15N26CXB Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

The fan is necessary to prevent the laptop from overheating. This guide will show you how to properly remove the fan component in the Sony Vaio Fit SVF15N26CXB. Use the project mat to keep the screws organized.

  1. vsdeNHGEplo5qZOg
    vsdeNHGEplo5qZOg
    nqWEsnEnKkYAuuYN

    • Remove the following ten screws from the bottom case of the laptop:

    • Two 6.5mm Phillips #00 Phillips screws.

    • Four 8.95mm Phillips #00 screws.

    • Four 6.25mm Phillips #00 screws.

    • The screws may be hidden underneath a rubber foot that can be removed with a spudger.

  2. QfSIB5rVISCg6tY6
    QfSIB5rVISCg6tY6
    DYTyWEdNpmpcfY4a

    • Use a plastic opening tool to separate the bottom cover from the laptop.

    • Lift the lower cover and pull away from the laptop.

  3. TJFYHHZi1ZIZDELH
    TJFYHHZi1ZIZDELH
    f2abAkDebLU6qPPs
    p6Zc1GtCyjCDBnPN

    • Remove the eight Phillips #00 screws from the battery:

    • Six 4.65mm screws.

    • Two 4.65mm screws.

  4. FEjLMWlLakGGnS5T

    • Lift the battery up and pull it out of the laptop.

  5. samuskAwrBpqN1PJ
    samuskAwrBpqN1PJ
    eAHWsSXlLoJIHJdi
    amE5UL26bO6hojvc

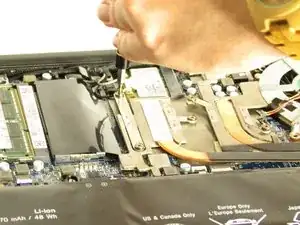

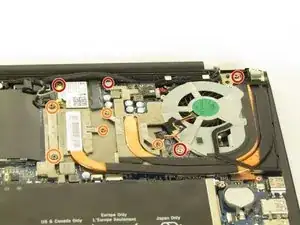

    • Remove the four 4.58mm Phillips #00 screws from the cooling system.

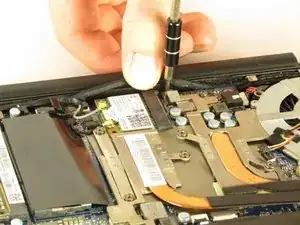

    • Unscrew the five Phillips #00 screws from the heatsink.

    • These screws will remain attached to the heatsink.

  6. OWMIgShlEgVRJxND
    OWMIgShlEgVRJxND
    WvqTjLAOSNI5Vq56

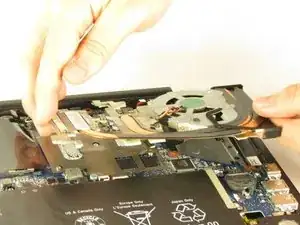

    • Disconnect the fan from the motherboard.

    • This connector should be pulled upwards, not outwards.

    • Remove the fan unit.

Abschluss

To reassemble your device, follow these instructions in reverse order.
