Sony Vaio PCG-161L Speakers Replacement

Geschrieben von: Roman Alshehri
  • Kommentare: 0
Sony Vaio PCG-161L Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

Are your speakers in your Sony Vaio PCG-161L no longer working? You can replace them in 30 minutes using this guide.

  1. T2RAG1J5IogNMGFF

    • Turn your device upside down and remove the 6 10mm screws attaching the back casing to the device using a phillips head screwdriver.

  2. IG3A1GpH3laaZCml
    IG3A1GpH3laaZCml
    olaZop4Vuvytf3wA

    • Lift up underneath the keyboard using the iFixit opening tool to expose the ribbon wires connecting the keyboard to the motherboard.

  3. TeHHcY3JPXGWDGnu
    TeHHcY3JPXGWDGnu
    W35yRaPCyQQiVdWX

    • The two ribbon cables connecting the keyboard to the motherboard are held in using zero insertion force (ZIF) connectors.

    • Use a plastic opening tool or your fingernail to flip up the small retaining flaps, then pull the ribbon cables out of their connectors.

  4. ZknRLnlpLK1ZUisD

    • Remove the three 10 mm screws holding the casing to the top of the motherboard using a Phillips screwdriver.

  5. YJZtEF5vIJXqN3Tb

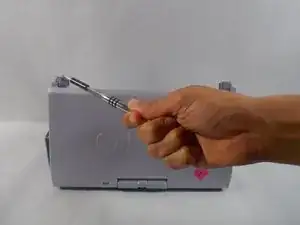

    • Remove the 6 mm Phillips #0 screw on the left side of the battery that holds the casing to the device.

  6. vTHPb6SYRLFOd3IY

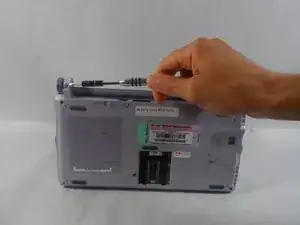

    • Turn the device upside down and remove the 6 mm Phillips #0 screw holding the casing to the device.

  7. tMxCMFIhMfylLaSJ

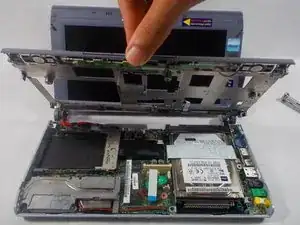

    • Remove the top casing by lifting up on the plastic exposing the two speakers.

  8. EUEbLSMV3rTMBuhg

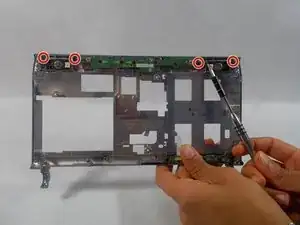

    • Remove the two 4 mm screws attaching the broken speaker to the casing.

    • Each speaker has two 4mm screws holding it to the casing. If you are removing both speakers, remove all four screws.

  9. dH5TZcFXXylEOGyk

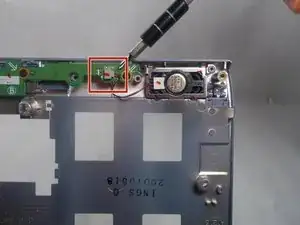

    • Disconnect the wire from the board by pulling the wire out of the harness.

    • These harnesses do not have any clips or tabs. Simply pull on the wire and it will come out of the harness.

Abschluss

To reassemble your device, follow these instructions in reverse order.
