Sony Vaio PCG-41216L Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

3 Minuten

Einleitung

If the laptop is having internal software issues or Windows has warned that the battery has reached extremely low capacity, use this guide to remove and replace the battery.

  1. rYMHp4fIOVTqULP5
    rYMHp4fIOVTqULP5
    dXg6VJ6fCv5CFHaX

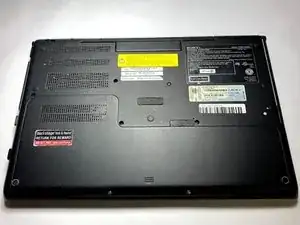

    • Flip the laptop over to begin the process.

    • Make sure the laptop is turned off and unplugged from the power cable.

  2. 4IFZEN3OPCh16QBV
    4IFZEN3OPCh16QBV
    uvpkNrStwEk622lJ
    BHnlTTfSNKxXUVUY

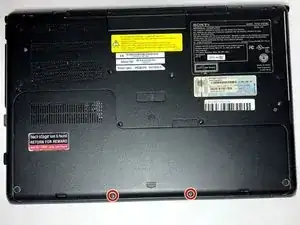

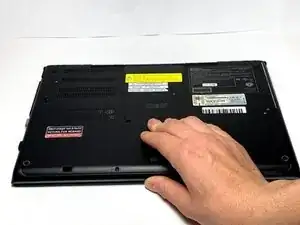

    • Remove the two 7mm Phillips #1 screws holding the battery cover.

  3. 3yArcWQ2pocpuuTG
    3yArcWQ2pocpuuTG
    tONgHNDsE3OFnLe3
    slDZmcU1CnDY1jkG

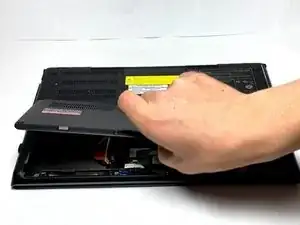

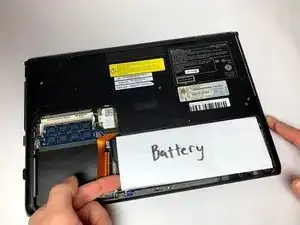

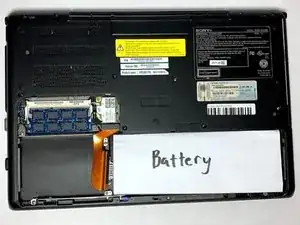

    • Remove the battery cover and set it aside. Carefully remove the non-functioning battery and insert the new battery in its place.

    • Make sure to reattach the battery in the right position with the power port, so that the power connector lines up with the battery’s port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
