Sony Vaio PCG-4121GL Keyboard Replacement

Geschrieben von: Miguel Camarena
  • Kommentare: 1
Sony Vaio PCG-4121GL Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

20 - 30 Minuten

Einleitung

If your laptop's keys are unresponsive or dirty a faulty keyboard may be the cause. If cleaning or replacing the keys does not work, you may need to replace the entire keyboard. Before starting this guide, it may be helpful to have a secure place to put the screws after they have been removed.

  1. ASDWeBtvJQtmjMgZ
    ASDWeBtvJQtmjMgZ
    j2Tio3yMnwaIDeSA

    • Remove the two 3mm Phillips #0 screws on the bottom of the computer that secure the plastic backing.

  2. dQV5lVylIdm4BFtX
    dQV5lVylIdm4BFtX
    Ye1c2ZoygObJvNsk
    pKOJLSdEATlJWeoj

    • Pull the bottom plate towards yourself until it unhinges fully.

    • Once the plate is free from the backing remove it completely.

  3. HSTSVhcNORM4LEQB

    • Look for the blue tab that is located to the bottom left of the battery.

  4. 3EGJ1RoK5RUObcEe
    3EGJ1RoK5RUObcEe
    eC2sCcEtiU5KPUVZ
    XKDOoTN6oxbJ6JiY

    • Pull the blue tab towards yourself until you hear a click.

    • Once the blue tab is released, pull up on the battery.

    • Once the battery can move freely, take it out completely.

    • It may be helpful to have a spudger to make it easier to release the blue tab.

  5. BIQWGoIrNjFrgfrj
    BIQWGoIrNjFrgfrj
    D1OM6aqqEliCEdEZ

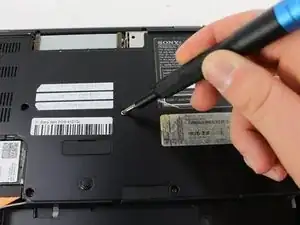

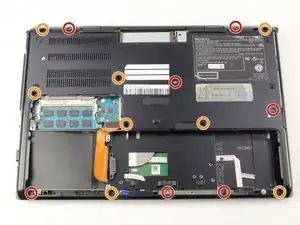

    • Remove seven 3mm Phillips #0 screws from the bottom of the computer.

    • Remove eight 5mm Phillips #0 screws.

  6. oWhFFtvfKUVOiHtD
    oWhFFtvfKUVOiHtD
    OAILrFefhXocTIYP
    FpeVulC1SaJmedkD

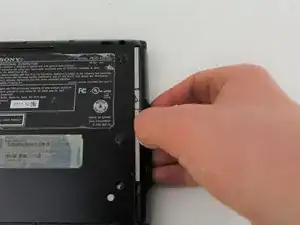

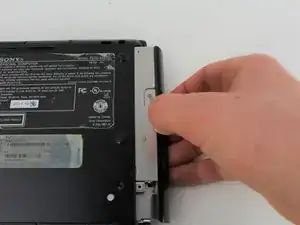

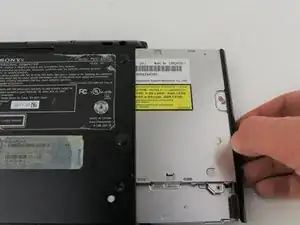

    • Carefully remove the disk drive from its compartment.

  7. MrWYpVHaSDYUn2nP
    MrWYpVHaSDYUn2nP
    MPTaNsPUOWPUXLgx

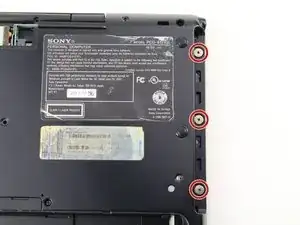

    • Remove the three 2mm Phillips #00 screws located on the top right edge.

  8. F141Y3BYJWJwJ652
    F141Y3BYJWJwJ652
    vbuxQFFfsNvuoCmN
    221N2BKsbrVDpfFl

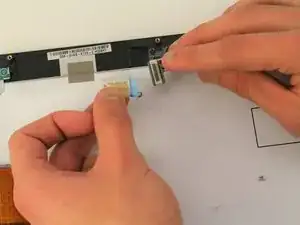

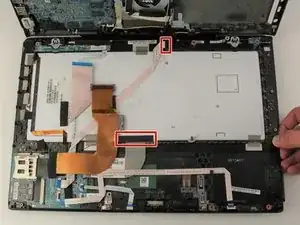

    • Gently pull apart the top and bottom plastic bodies.

    • Carefully lift up tabs to detach cable connectors.

    • Slowly detach bottom component to avoid tearing wires/connectors.

  9. tIAAgCFYkVCRyHO5
    tIAAgCFYkVCRyHO5
    SbnRykySOyWpOkMG
    LJejvy12SNyFXCdc

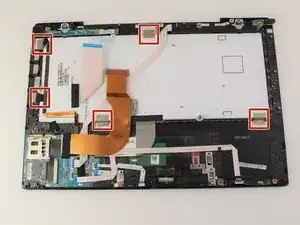

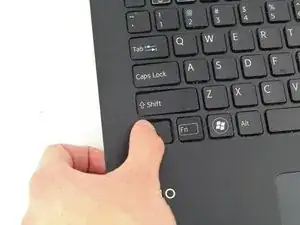

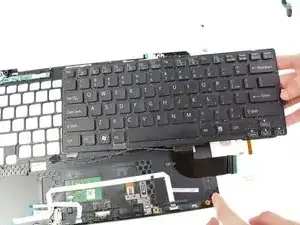

    • Remove the tape strips along the edge of the keyboard.

    • Once the keyboard is disconnected, slowly poke out keys one-by-one.

    • When the keyboard is free to move, remove it completely.

    • The keyboard is held in place with glue, once it is removed it is likely that it will not go back in the same way.

Abschluss

To reassemble your device, follow these instructions in reverse order.
