Sony Vaio PCG-4121GL SD Card Board Replacement

Geschrieben von: Bryce McNeil
  • Kommentare: 0
Sony Vaio PCG-4121GL SD Card Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

20 - 25 Minuten

Einleitung

If your SD card is not being recognized, this fault may be due to your SD card board needing cleaning or replacement. Before starting this guide, it may be helpful to have a secure place to put the screws after they have been removed.

  1. ASDWeBtvJQtmjMgZ
    ASDWeBtvJQtmjMgZ
    j2Tio3yMnwaIDeSA

    • Remove the two 3mm Phillips #0 screws on the bottom of the computer that secure the plastic backing.

  2. dQV5lVylIdm4BFtX
    dQV5lVylIdm4BFtX
    Ye1c2ZoygObJvNsk
    pKOJLSdEATlJWeoj

    • Pull the bottom plate towards yourself until it unhinges fully.

    • Once the plate is free from the backing remove it completely.

  3. HSTSVhcNORM4LEQB

    • Look for the blue tab that is located to the bottom left of the battery.

  4. 3EGJ1RoK5RUObcEe
    3EGJ1RoK5RUObcEe
    eC2sCcEtiU5KPUVZ
    XKDOoTN6oxbJ6JiY

    • Pull the blue tab towards yourself until you hear a click.

    • Once the blue tab is released, pull up on the battery.

    • Once the battery can move freely, take it out completely.

    • It may be helpful to have a spudger to make it easier to release the blue tab.

  5. 4VVBQtZDlvaCcLto
    4VVBQtZDlvaCcLto
    AXPGLZ5tdTSDSEoN

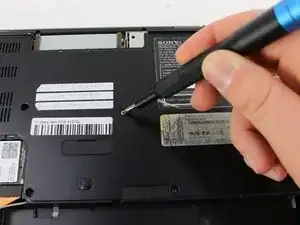

    • Remove seven 3mm Phillips #0 screws from the bottom of the computer.

    • Remove eight 5mm Phillips #0 screws.

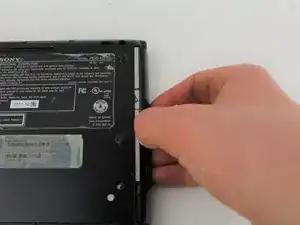

  6. eOeZXc1FZpVgcGfJ
    eOeZXc1FZpVgcGfJ

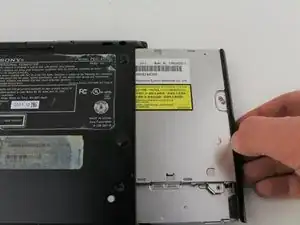

    WHbjb1ZsDgcvDYoP
    EQuJtLn2kjXfXCWT

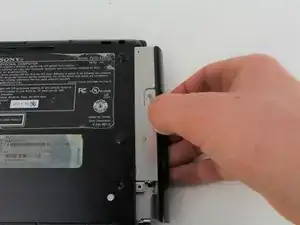

    • Carefully remove the disk drive from its compartment.

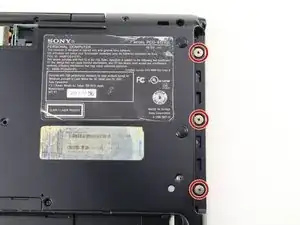

  7. CiESpZwHghjjoM3N
    CiESpZwHghjjoM3N

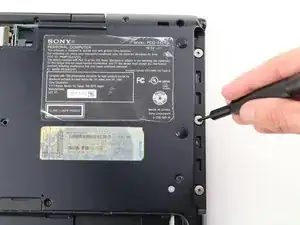

    AQZSKLx5ZUjiQuIn

    • Remove the three 2mm Phillips #00 screws located on the top right edge.

  8. nQYW3tlWwn4RZkmV
    nQYW3tlWwn4RZkmV
    k5A3MIQ1KUJuqHNq

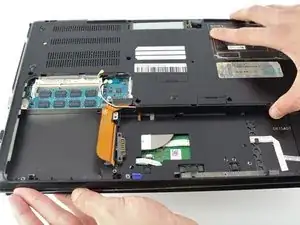

    • Gently pull apart the top and bottom plastic bodies.

    • Carefully remove the cable connectors.

    • Slowly detach bottom component to avoid tearing wires/connectors.

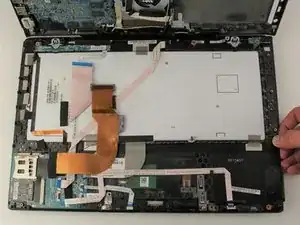

  9. D3QXrpkdugHQe6iK
    D3QXrpkdugHQe6iK
    GDBT4imWWbnJAPEv
    lAuTxjS63rZq2XXl

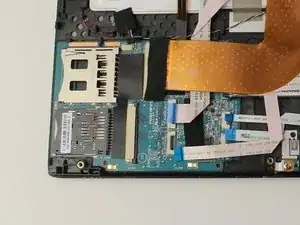

    • Pull apart your device and set aside the screen of your laptop.

    • Locate the SD Card Board in the bottom left of the computer body.

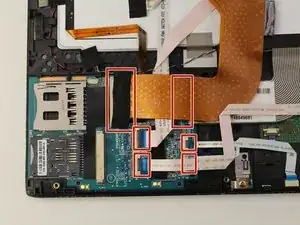

  10. WaPevBtYtDTdOI1Z
    WaPevBtYtDTdOI1Z

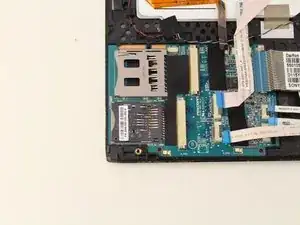

    yxhVUOYf3LlZYSnp

    • Remove the cables from their connectors.

    • Do not apply too much force to the cable connectors or they may tear.

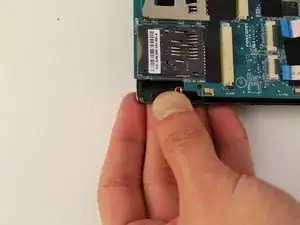

  11. hhTAGmOBRHUYKdL3
    hhTAGmOBRHUYKdL3
    QZQeklBi2jRnsviu

    • Lightly press down on the bottom left corner of the plastic frame.

    • Pull SD Board out towards you once it feels loose.

    • Once the SD Board is free from the plastic, remove completely

    • The SD Card slot is shown.

Abschluss

To reassemble your device, follow these instructions in reverse order.
