Sony Vaio PCG-4G1L Optical Drive Replacement

Geschrieben von: Cole Collins
  • Kommentare: 0
Sony Vaio PCG-4G1L Optical Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

15 - 35 Minuten

Einleitung

Common reasons for optical drive replacement: constant reading errors, the drive does not spin, or has become too noisy.

In this guide, you will learn how to replace the optical drive for your device. Please remember to unplug the charging cable, since it could result in electric shock.

  1. oWQywlrepD4rxPfE

    • Turn off the computer and disconnect the charging cable.

    • Failing to unplug the cable can result in electric shock.

  2. nfXDAtfmlXBRCFPQ
    nfXDAtfmlXBRCFPQ
    dYJTWGNWLS1rGxmY

    • Slide battery release toggle switch towards the "RELEASE" print.

  3. 1cwiW4kvQaZn2FJV
    1cwiW4kvQaZn2FJV
    iQ1MLyxJDMkGDSmL
    avFdUuZWhx22QKx4

    • Apply pressure with your thumb on the grip.

    • Pull the battery out while simultaneously holding the battery release toggle switch in the release position.

  4. O6NAsxNN5McKjwC5
    O6NAsxNN5McKjwC5
    pBPrwBJqZPSLJ16V

    • Remove one 5 mm Phillips #1 pan head screw, in the middle of the laptop, using a Bit Driver with Phillips PH1 bit.

  5. 3xreYHKBPi5ThLT2
    3xreYHKBPi5ThLT2
    LUhZXIhKjFSoqbi4

    • Be sure to pry the plastic opening tool under the keyboard, rather than under the keys. Otherwise, some keys could get harmed.

    • While using a plastic opening tool, carefully lift the keyboard by inserting the tool under the edge.

  6. DIXfUAQmqOZbOoco
    DIXfUAQmqOZbOoco
    v3ZqOaGKnx4pQiCn
    ZOahoqoF2GaQFNQX

    • Do not pull the keyboard too far away, as a ribbon cable is still attached. Failing to do so can cause damage to the ribbon cable or the connector.

    • Use the plastic opening tool to release the clamp.

    • Using slight pressure, remove the ribbon cable with your fingers.

  7. 1vn1K26CXEoLyEZC

    • Swivel the Network Antenna up so that it points upward.

  8. TgYa61AifdqpVKnN
    TgYa61AifdqpVKnN
    DCcWyKw43KfMMXU1

    • Pinch thumb and index finger at the Network Antenna's base.

    • Make sure not to bend the Network Antenna. Failing to do so can cause damage to the antenna.

    • Pull the Network Antenna off.

  9. EfaqQsijHbMDt36T
    EfaqQsijHbMDt36T
    vKKlEnNfQZsxfIrI

    • Remove seven 5 mm Phillips #1 pan head screws with a Bit Driver, using a Phillips PH1 bit.

  10. fAtkWHc1JnTGxpwX
    fAtkWHc1JnTGxpwX
    ge26W125LHeuZODR

    • Remove one 7 mm Phillips #1 Pan Head Screw by using a Bit Driver with Phillips PH1 bit.

  11. vDTytU3t5E5CrDRK
    vDTytU3t5E5CrDRK
    maKOLtLI2DkSkf5o

    • Disconnect the cable by using the precision tweezers.

    • Slowly pry out the ribbon cable by using the plastic opening tool.

  12. K6qyJIDSe3kbBT6g

    • Do not pull the plastic cover too far away, as a ribbon cable is still attached. Failing to do so can cause damage to ribbon cable or the connector.

    • Remove the plastic cover by inserting the plastic opening tool around the edge.

  13. xi2SQ1bZWCyKLNKQ
    xi2SQ1bZWCyKLNKQ
    DThXSQL1PsKBZTYT

    • Disconnect the ribbon cable by pulling straight up with your fingers.

  14. H4KFiNG3RlZ5BUvj
    H4KFiNG3RlZ5BUvj
    CgMSXkbPxmoFDYGf

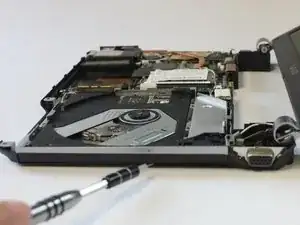

    • Insert the PH0.8 bit into the pin hole to eject the optical drive.

  15. K3Ybe1ydQoSaerIB
    K3Ybe1ydQoSaerIB
    qMYp31H6b1AFJFJC

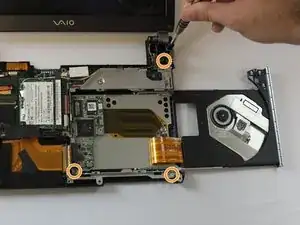

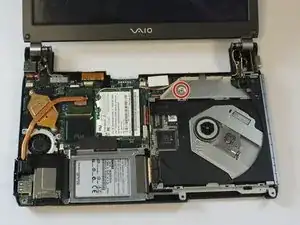

    • Remove one 4mm Phillips #0 pan head screw, using a Bit Driver with a Phillips PH000 bit.

    • Remove three 5mm Phillips #0 flat head screws, using a Bit Driver with a Phillips PH000 bit.

  16. tHkX3DYoOxS1LqeA
    tHkX3DYoOxS1LqeA
    DQFleuLTLpFdl45W

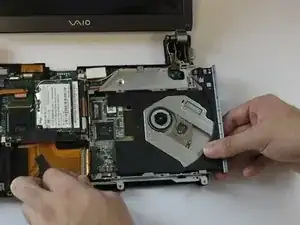

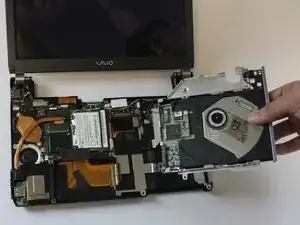

    • Apply pressure to the ribbon cable, then pick up and pull the optical drive away from the cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
