Sony Vaio PCG-F360 Floppy Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

The PCG F360 comes with a floppy drive in an expansion bay. This can be replaced or swapped out for a battery or for a weight saver.

  1. JN5TB5BPqAX1Tfvd

    • Position the laptop screen-side down as shown.

    • In this position the battery housing will be located on the right hand side.

  2. dtcyb1p6eSrCuJ2H

    • Lift the panel up and then out to gain access to the battery.

  3. CG6TkfRDIGbvnIEc

    • Use the indentations to pull the old battery out.

  4. CpEQxSBCyQnlUCee

    • The battery is now removed and it is safe to move on to uninstalling other components.

  5. tNiUexfhJI5Nt31I
    tNiUexfhJI5Nt31I
    2w1LQinBJZI61cL6

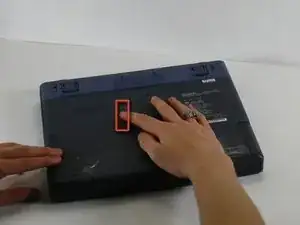

    • With one hand slide and hold the tab shown.

    • With your other hand, pull the floppy drive out of the floppy drive bay.

    • To replace the floppy drive, simply slide the drive into the slot until it clicks.

Abschluss

To reassemble your device, follow these instructions in reverse order.
