Sony Vaio PCG-F360 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 25 Minuten

Einleitung

Increasing the capacity of your hard drive can improve your computer's performance.

Note: our computer did not contain a hard drive, so we just point to the hard drive bay in this guide.

  1. JN5TB5BPqAX1Tfvd

    • Position the laptop screen-side down as shown.

    • In this position the battery housing will be located on the right hand side.

  2. dtcyb1p6eSrCuJ2H

    • Lift the panel up and then out to gain access to the battery.

  3. CG6TkfRDIGbvnIEc

    • Use the indentations to pull the old battery out.

  4. CpEQxSBCyQnlUCee

    • The battery is now removed and it is safe to move on to uninstalling other components.

  5. CHT6XY1xGHh1O5BR
    CHT6XY1xGHh1O5BR
    lUPJsbSDvPgschkO
    lojwHGVvjfvsGVEJ

    • There are two screws on the left hand side of the laptop near the IR (Infared remote) receiver (see image). Remove them using a Phillips #00 Screwdriver.

    • Slide the speaker panel towards the left, then carefully flip it over onto the keyboard.

    • Make sure not to pull the speaker panel away from the computer just yet - it is still connected!

  6. EPmYyJmacCymbGoQ
    EPmYyJmacCymbGoQ
    Rp2PawGVaUG6lnqM
    dXANaoqNtRUmScnu

    • On the inside of the speaker panel, using a spudger, push the beige tab in the direction of the ribbon. It should only move a small amount.

    • Remove the ribbon by gently pulling on it, there should be little or no resistance.

    • Now the speaker panel can be set aside.

  7. vgXxBZA14nZtNUK1
    vgXxBZA14nZtNUK1
    P3WnCqVABwcs5RBU

    • Remove the metal screw that will be located at the red circle.

    • Pull on the green strip, and the keyboard should come free easily.

  8. GyDVE1eJ4VsWhYIq
    GyDVE1eJ4VsWhYIq
    PjeJPE2cQnhCmhNt

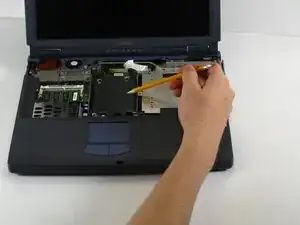

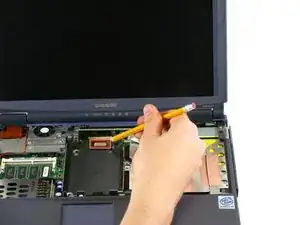

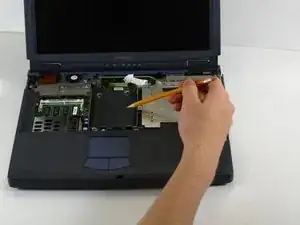

    • We had a bit of a surprise when we opened our Sony. The hard drive was missing! While this is common practice when disposing of or selling a computer, it means that we're unable to show you what the hard drive looks inside the laptop.

    • If a hard drive was present, it would attach to the motherboard by the shown connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
