If your keys appear to be broken, replacing the keyboard may be necessary.
To make sure the problem is with the keyboard, follow the trouble shooting guide.
When buying a new keyboard make sure it is compatible with PCG-F420.
CAUTION: Static electricity in your body can ruin your computer. Use an anti-static wristband.
-
-

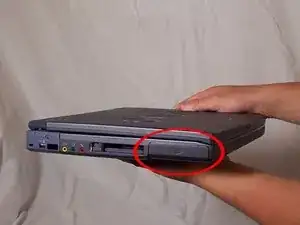

Pull the plastic cover down (indicated by the arrow on the cover) and then swing it upwards to reveal the battery compartment.
-

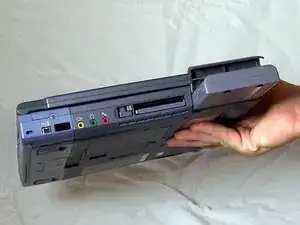

The battery can now be removed by pulling it.
-
-
-
Use your Philips #00 screwdriver to unscrew the small screw counterclockwise. This screw is for the audio/visual jacks on the left side of the laptop.
-
-
-

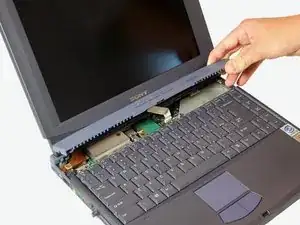

This will unlock the cover between the keyboard and screen. Gently slide it to the right and lift up.
-
-
-
Lift up the cover and lean it against the display so it is out of the way for the rest of the process.
-
Remove the small screw above the F6 key on the keyboard. Place screw in container to ensure it wont be lost.
-
-
-

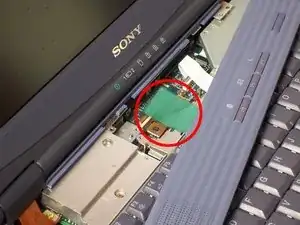

Find the green ribbon as indicated in the picture by the red circle. This is what connects the keyboard to the motherboard.
-
-
-

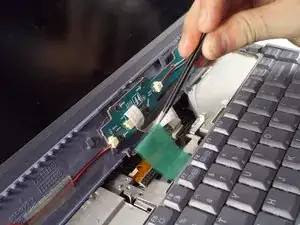

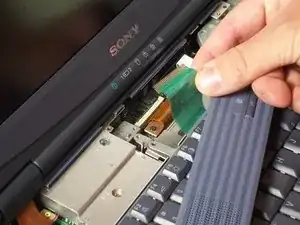

To unplug the ribbon cable, use a pair of tweezers to lift up the white bar near the connection to the motherboard. Only lift up the ribbon lightly to release ribbon from the motherboard.
-
-
-

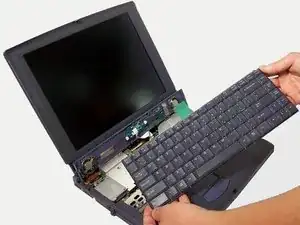

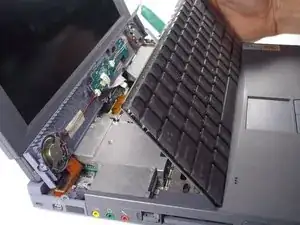

Your keyboard is now safety detached. Necessary repairs or replacements can be made from here.
-
To reassemble your device, follow these instructions in reverse order.
