Sony Vaio Pro 13 Internal Battery Replacement

Geschrieben von: Alex R
  • Kommentare: 1
Sony Vaio Pro 13 Internal Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This guide shows how to replace the battery on the Sony Vaio Pro 13. Special care must be taken when handling Lithium-Ion batteries, avoid puncturing or bending the battery pack. Always recycle your old battery pack according to your local regulations.

  1. SNkWn5T524Val1lN
    SNkWn5T524Val1lN
    i1LApANucBVKDgV2

    • Remove cover for the extended battery connector. Use your finger nail or a plastic opening tool to remove it.

    • Remove the two rubber feet at the back of the computer, these can be removed in the same way.

  2. gF6CfeN1kWLkk11C
    gF6CfeN1kWLkk11C
    WcUBZdEcsOtdZ4IH

    • Remove the four 5.6mm Philips #00 screws located at the top of the computer.

    • Remove the eight 3.6mm Philips #00 screws on the base of the computer.

  3. oZsVKkF3wiA6brGe
    oZsVKkF3wiA6brGe
    SPNrMfCKyNcuxDuE

    • Using a plastic opening tool, pry the plastic casing away from the base of the computer, the remaining clips around the edges can be released using your hands.

    • Leave the side with the USB and audio port until last, then slide the case out and off, so the audio port doesn't get caught.

  4. YvmFOlWHAtXAX3n6

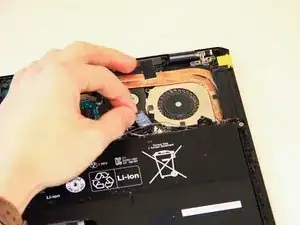

    • Once the bottom cover is removed, peel away the piece of tape located near the fan and heat sink assembly.

  5. 4BtYnYXfpGBGcyfd
    4BtYnYXfpGBGcyfd
    JScuuBsk2JgXJBnY

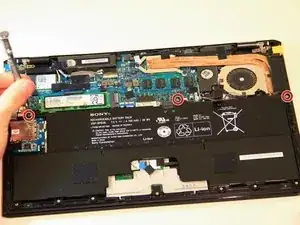

    • Remove the three 4.2mm Philips #0 screws located at the top of the battery.

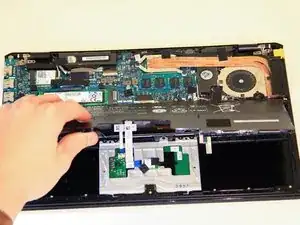

    • Simply lift the battery away from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
