Trackpad replacement

  1. SNkWn5T524Val1lN
    SNkWn5T524Val1lN
    i1LApANucBVKDgV2
    • Remove cover for the extended battery connector. Use your finger nail or a plastic opening tool to remove it.

    • Remove the two rubber feet at the back of the computer, these can be removed in the same way.

  2. gF6CfeN1kWLkk11C
    gF6CfeN1kWLkk11C
    WcUBZdEcsOtdZ4IH
    • Remove the four 5.6mm Philips #00 screws located at the top of the computer.

    • Remove the eight 3.6mm Philips #00 screws on the base of the computer.

  3. oZsVKkF3wiA6brGe
    oZsVKkF3wiA6brGe
    SPNrMfCKyNcuxDuE
    • Using a plastic opening tool, pry the plastic casing away from the base of the computer, the remaining clips around the edges can be released using your hands.

    • Leave the side with the USB and audio port until last, then slide the case out and off, so the audio port doesn't get caught.

  4. YvmFOlWHAtXAX3n6
    • Once the bottom cover is removed, peel away the piece of tape located near the fan and heat sink assembly.

  5. 4BtYnYXfpGBGcyfd
    4BtYnYXfpGBGcyfd
    JScuuBsk2JgXJBnY
    • Remove the three 4.2mm Philips #0 screws located at the top of the battery.

    • Simply lift the battery away from the computer.

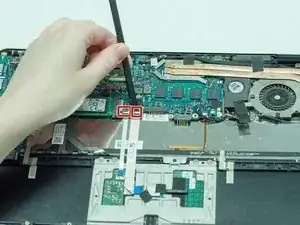

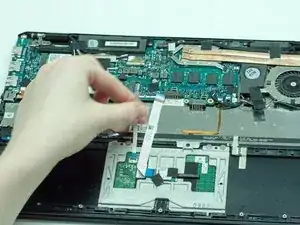

  6. UXqrexnY2PxTMUYa
    UXqrexnY2PxTMUYa
    MAFcIqc1IwaHlDgS
    • Use the nylon spudger to lift up on both of the white wire strips.

    • Then use your fingers to lift them up.

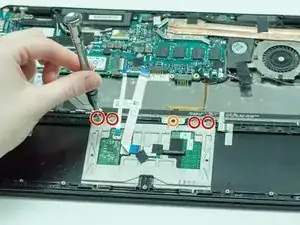

  7. tccgyYome54ITdDQ
    tccgyYome54ITdDQ
    wC4oavq2PUxtpAEt
    • Using the Phillips head screwdriver, remove the four screws holding the track pad in.

    • Use the Phillips head again and remove the final black screw.

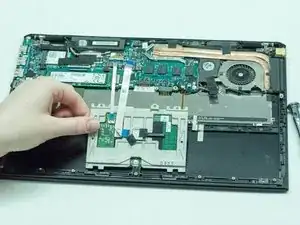

  8. PAEpXD2N3avBXKAW
    PAEpXD2N3avBXKAW
    KmuOSft5kYgrRQHV
    • Finally, remove the track pad from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
