Sony Vaio SVE15112FXS Keyboard Replacement

Geschrieben von: Ashley Bierman
  • Kommentare: 0
Sony Vaio SVE15112FXS Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

45 Minuten

Einleitung

If your keyboard is damaged or not working properly, you can use this guide to replace it. This process is simple and only requires a #0 Phillips screwdriver, a plastic opening tool, and magnetic project mat to keep track of the screws for each step. Be sure to handle the keyboard with care as it is a delicate part.

  1. gIYrWlQoDGvQXgCE

    • Power laptop off before beginning.

    • Turn the laptop over so that it is positioned top down with the model number facing you.

  2. 2aVFGtBgvhXUZWcc

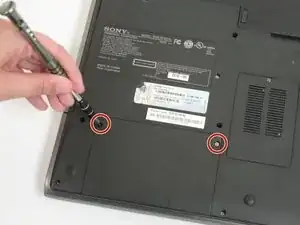

    • Use a #0 Phillips screwdriver to remove the two 4.0 mm screws securing the hard drive cover.

    • To avoid losing any parts, we recommend that you place the loose screws on a magnetic project mat.

  3. T6vpPSQGjmoDNw3T
    T6vpPSQGjmoDNw3T
    s4OIOsccnJCmJRNb

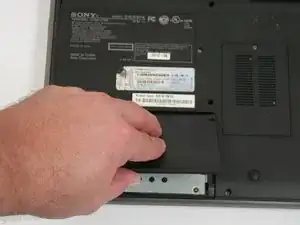

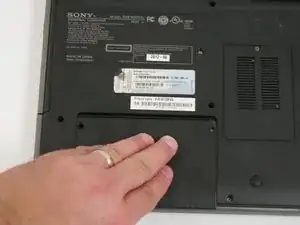

    • To expose the hard drive, remove the cover by sliding it toward you and pulling up on the panel.

  4. dpcOqdZ6yBU2tD2t

    • Use a #0 Phillips screwdriver to remove the two 4.0 mm screws attaching the hard drive to the laptop.

  5. joJwk26iWX1RWPjY
    joJwk26iWX1RWPjY
    TfiPoDOyVHscHUat

    • Pull the clear plastic ribbon to the left until the mount is detached from the laptop.

    • There will be some resistance as the hard drive is disconnected. If it does not move at all, check that all anchor screws are removed.

    • Lift the hard drive out of the well.

  6. lXiEXrR4bxMWX1mZ

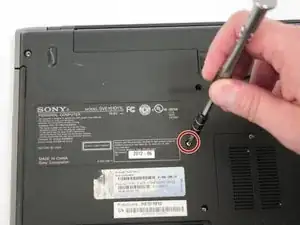

    • Use a Phillips #0 screwdriver to remove the one 4.0 mm screw next to the model number label.

  7. pfA5YGSSCs45llyF

    • Use a plastic opening tool to slide the CD-ROM out from the laptop.

  8. RQoAtHsyf6UJ2lmY
    RQoAtHsyf6UJ2lmY
    TELGcrhUZWyTHilD
    REvNFajaGVsD3Trl

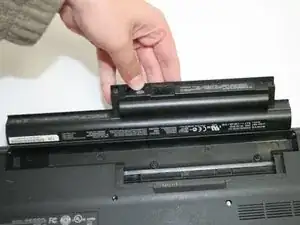

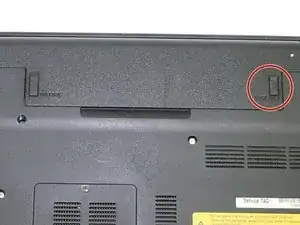

    • Slide the "lock" tab upward to unlock the battery before removal.

    • While pushing the "release" tab upward, lift the battery and pull outward to remove it from the laptop.

  9. ebeCIK4gRVSUGCoW
    ebeCIK4gRVSUGCoW
    QY3KRC3KjsNg5ObK
    bl2REelt5oIPTVnj

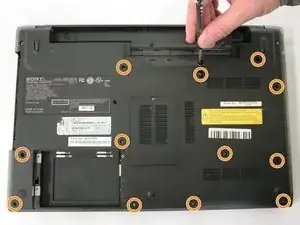

    • To unsecure the back cover, remove all the case screws using a #0 Phillips screwdriver.

    • Remove the two 9.0 mm screws on each side of the battery.

    • Remove the twelve 8.0 mm long screws alongside the entire back cover.

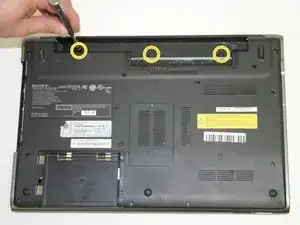

    • Remove the three 3.0 mm screws inside the battery well.

  10. dmgkDF6gTcR1IMaH
    dmgkDF6gTcR1IMaH
    QMtJZhXnmAqAID1c
    WMtqYMPOJDZH5GBE

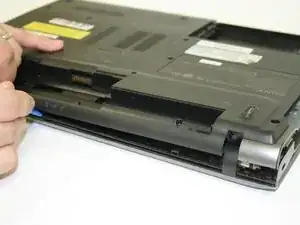

    • Use a plastic opening tool to carefully pry open the latch points located under the silver plastic trim. Repeat this around the back cover.

    • It may be easiest to start around the CD-ROM bay because there is more room.

    • To avoid damaging the plastic trim and cover, do not force difficult areas and make sure the opening tool is completely under the black plastic cover, not just the silver trim.

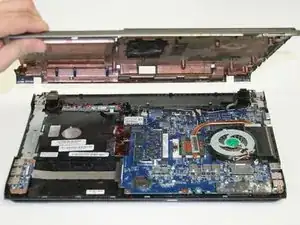

    • Lift the back cover upward and away from the laptop.

  11. XJqGLXELkGVSNIbH

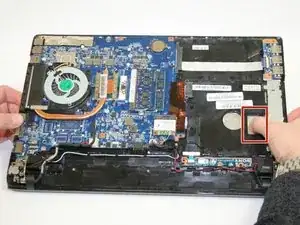

    • Gently push the rectangular opening on the CD-ROM well to loosen the keyboard.

  12. hADXncnuJPjSfF2X
    hADXncnuJPjSfF2X
    dkMsGhVZJKHBUcKB

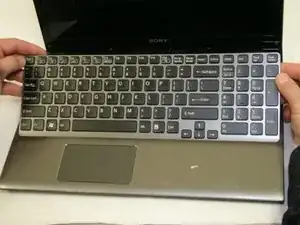

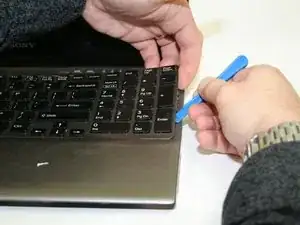

    • Use a plastic opening tool to pry upward on the keyboard. Only the top of the keyboard is latched.

    • Lift the keyboard toward you and away from the laptop.

  13. snAloBSrm2MpSxXd
    snAloBSrm2MpSxXd
    2UI1ZL2VCDhmiCoh

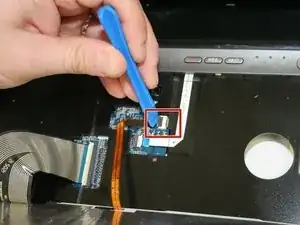

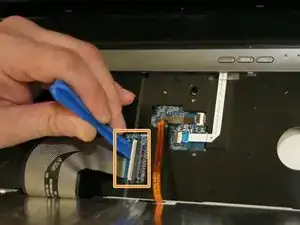

    • Use a plastic opening tool to disconnect the two ZIF connectors attached to each ribbon. Both are located under the keyboard and have a clear flap that must be lifted upward before removal.

    • Open the white connector attached to the copper ribbon.

    • Open the white connected attached to the black and white striped ribbon.

    • Take care when opening these connectors. The ribbon is anchored underneath the clear flap. Pulling these pieces out of their sockets will make it difficult to reassemble them.

    • Lift the keyboard away from the body of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
