Sony Vaio SVE151G11L Battery Replacement

Geschrieben von: Alex Theg
  • Kommentare: 0
Sony Vaio SVE151G11L Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Sekunden - 1 Minute

Einleitung

The battery is responsible for powering power to the laptop when on the go. This is a comprehensive guide for replacing the battery in the Sony Vaio SVE151G11L laptop.

  1. 4BAvY21DXIYhbpZp

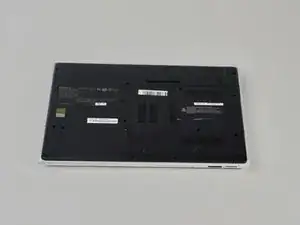

    • Turn the laptop over so its underside is facing upwards and visible.

  2. 1IYh5fEVphulRoHD

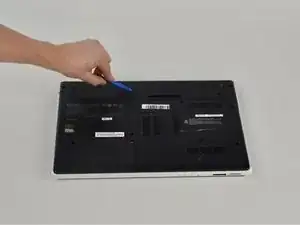

    • Standing so that the barcode and warning labels are upright and legible, push the left tab up and away from yourself.

  3. KpNwH2ROLUfHYKcJ

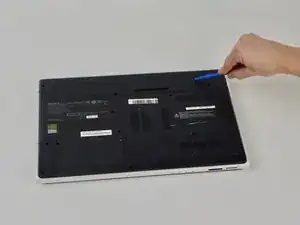

    • Standing so that the barcode and warning labels are upright and legible, push the right tab up and away from yourself.

  4. jEErFnailisjvPO2

    • Locate the small gap where the battery and the laptop shell meet. Lift from the gap and rotate the battery up and away from yourself.

  5. Ljvxh5qYGL43CKDJ

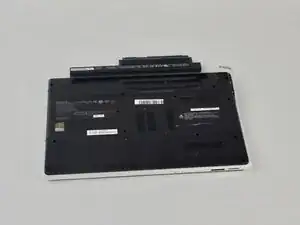

    • Pull battery away from laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
