Sony Vaio SVE151G11L Hard Disk Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

The Hard Disk Drive is responsible for storing your data. This is a comprehensive guide for replacing the HDD (Hard Disk Drive).

  1. MEyRmjDYVqJEBTUg

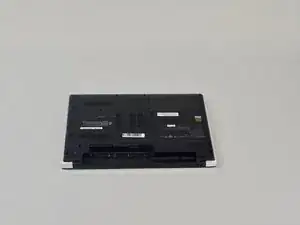

    • Flip laptop over so the bottom is facing upwards.

  2. Wt32uI56VoCylYCS

    • Remove 2 bottom screws in the top right on the HDD cover, with a size P000 screwdriver.

  3. hfWDLyOt4xZKxsVl
    hfWDLyOt4xZKxsVl
    2EhI1nPFHQeHE5FS

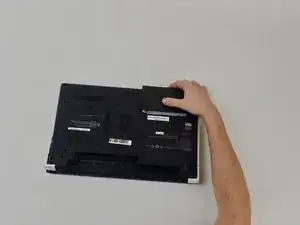

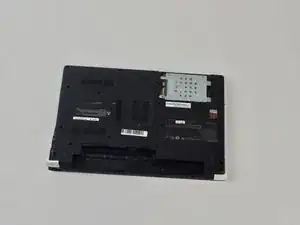

    • Pop open the cover to the HDD.

  4. YZbTvOmcEYYoDKjK

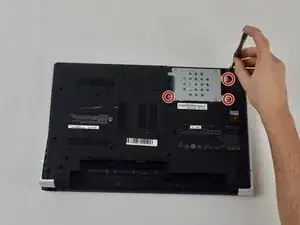

    • Remove the screws on the HDD with a Phillips #000 screwdriver.

  5. iWsii1KeZy52vUTM
    iWsii1KeZy52vUTM
    svBTfaoXQmp35JXR

    • Pull plastic tab away from the laptop.

    • Lift HDD away from laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
