Sony Vaio SVE151G11L Motherboard Replacement

Geschrieben von: Alex Theg
  • Kommentare: 0
Sony Vaio SVE151G11L Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

15

Zeitaufwand

Keine Schätzung

Einleitung

The motherboard is the component that controls the logic and computation of the laptop. This guide shows the steps to remove the motherboard for repair or replacement.

  1. 4BAvY21DXIYhbpZp

    • Turn the laptop over so its underside is facing upwards and visible.

  2. 1IYh5fEVphulRoHD

    • Standing so that the barcode and warning labels are upright and legible, push the left tab up and away from yourself.

  3. KpNwH2ROLUfHYKcJ

    • Standing so that the barcode and warning labels are upright and legible, push the right tab up and away from yourself.

  4. jEErFnailisjvPO2

    • Locate the small gap where the battery and the laptop shell meet. Lift from the gap and rotate the battery up and away from yourself.

  5. Ljvxh5qYGL43CKDJ

    • Pull battery away from laptop.

  6. MEyRmjDYVqJEBTUg

    • Flip laptop over so the bottom is facing upwards.

  7. Wt32uI56VoCylYCS

    • Remove 2 bottom screws in the top right on the HDD cover, with a size P000 screwdriver.

  8. hfWDLyOt4xZKxsVl
    hfWDLyOt4xZKxsVl
    2EhI1nPFHQeHE5FS

    • Pop open the cover to the HDD.

  9. YZbTvOmcEYYoDKjK

    • Remove the screws on the HDD with a Phillips #000 screwdriver.

  10. iWsii1KeZy52vUTM
    iWsii1KeZy52vUTM
    svBTfaoXQmp35JXR

    • Pull plastic tab away from the laptop.

    • Lift HDD away from laptop.

  11. UcrmTKU6LTKOmQrh

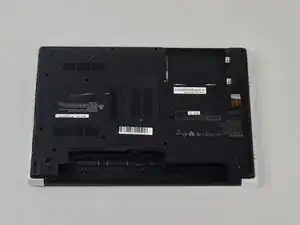

    • Flip the laptop over on its backside.

  12. SMfjLeYIP621pZ2E

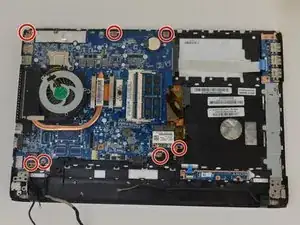

    • Remove the screws holding the motherboard in place.

  13. 2najZVuVvwMLvwEt
    2najZVuVvwMLvwEt
    LgwpssZlAmM6uMiJ

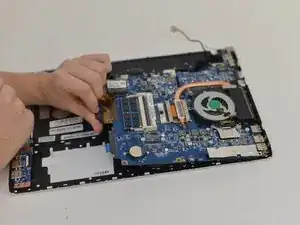

    • Pop the motherboard away from the frame.

  14. KFA5XrSRiFEwGKbk

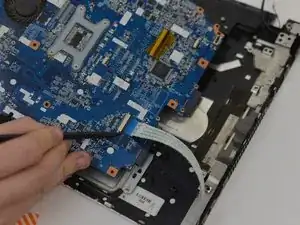

    • Remove the ribbon cable from the motherboard.

  15. XXlPSGqHQ1UGLZSE
    XXlPSGqHQ1UGLZSE
    o1M1kRBsGqL44Cb3

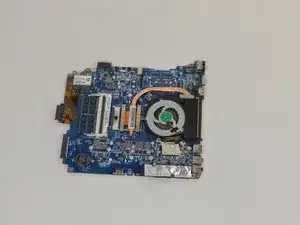

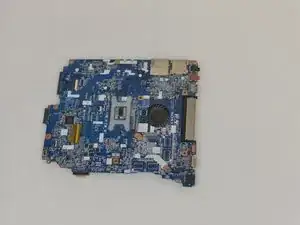

    • Remove motherboard from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
