Sony Vaio SVE151G11L Speaker Replacement

Geschrieben von: Alex Theg
  • Kommentare: 0
Sony Vaio SVE151G11L Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

20

Zeitaufwand

Keine Schätzung

Einleitung

The speakers allow the laptop to play sounds such as music. This guide shows the steps to remove the speakers for repair or replacement.

  1. 4BAvY21DXIYhbpZp

    • Turn the laptop over so its underside is facing upwards and visible.

  2. 1IYh5fEVphulRoHD

    • Standing so that the barcode and warning labels are upright and legible, push the left tab up and away from yourself.

  3. KpNwH2ROLUfHYKcJ

    • Standing so that the barcode and warning labels are upright and legible, push the right tab up and away from yourself.

  4. jEErFnailisjvPO2

    • Locate the small gap where the battery and the laptop shell meet. Lift from the gap and rotate the battery up and away from yourself.

  5. Ljvxh5qYGL43CKDJ

    • Pull battery away from laptop.

  6. MEyRmjDYVqJEBTUg

    • Flip laptop over so the bottom is facing upwards.

  7. Wt32uI56VoCylYCS

    • Remove 2 bottom screws in the top right on the HDD cover, with a size P000 screwdriver.

  8. hfWDLyOt4xZKxsVl
    hfWDLyOt4xZKxsVl
    2EhI1nPFHQeHE5FS

    • Pop open the cover to the HDD.

  9. YZbTvOmcEYYoDKjK

    • Remove the screws on the HDD with a Phillips #000 screwdriver.

  10. iWsii1KeZy52vUTM
    iWsii1KeZy52vUTM
    svBTfaoXQmp35JXR

    • Pull plastic tab away from the laptop.

    • Lift HDD away from laptop.

  11. mTsKuVWPJaXkaxLC
    mTsKuVWPJaXkaxLC
    YUDgpcHAwMxToVbt
    JVGVVkRR3XGoML2C

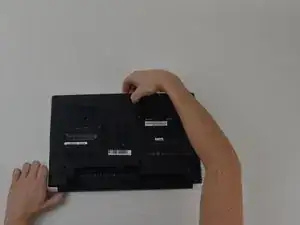

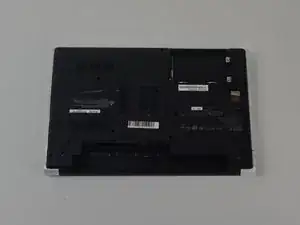

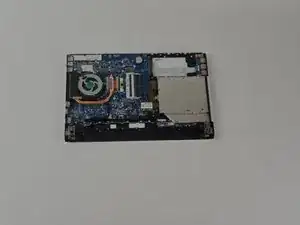

    • Remove the back cover.

  12. pNqrRFE6fDoKdJyA
    pNqrRFE6fDoKdJyA
    PQixoVCMOYibrKya

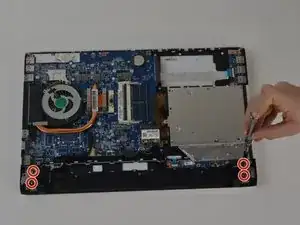

    • Remove 4 hinge screws with a Phillips #0 screwdriver.

  13. 4AVeIpWXJkZTjO1L
    4AVeIpWXJkZTjO1L
    IsxKTgecRUKsly2A
    JH3umJBNSpLNwrPa

    • Pop open hinge.

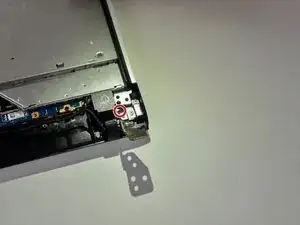

    • Remove black screw size P000.

  14. vysKZ5PpYqiJBY5T
    vysKZ5PpYqiJBY5T
    CS1MTWhpKuJuCStv

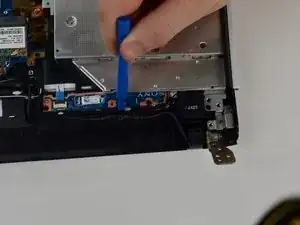

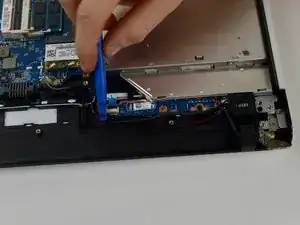

    • Remove wiring along its guide.

  15. HkbOKByRBCZAdcxA
    HkbOKByRBCZAdcxA
    oIJNKcQNLQEibrlV
    JoAKWVEPmVnH6UYL

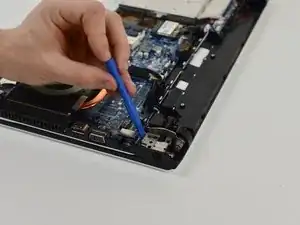

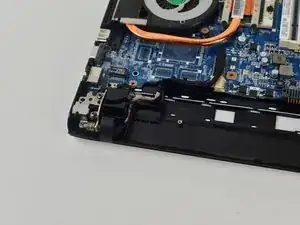

    • Remove two hinge screws size P00.

    • Pop open hinge.

  16. WCMBXonYZGesXcGc
    WCMBXonYZGesXcGc
    wnx6ABhY3rFR5YvY

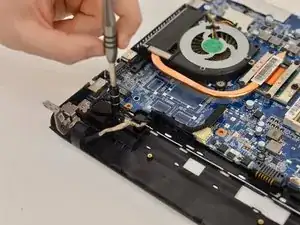

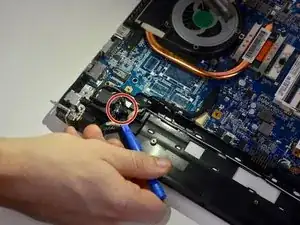

    • Remove black screw.

  17. RDMwHpyFCPVxLmwi
    RDMwHpyFCPVxLmwi
    rJNyA45sjKICOVdc

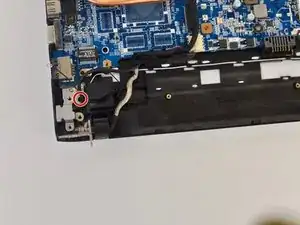

    • Remove secondary black screw.

  18. YNWqERqJ1DKQZlft

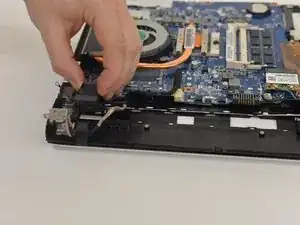

    • Remove speaker.

  19. WcFcJv6MGgylkLQO
    WcFcJv6MGgylkLQO
    X3Sgw2OWtDfbdpkl

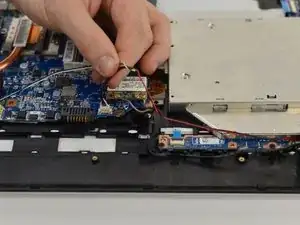

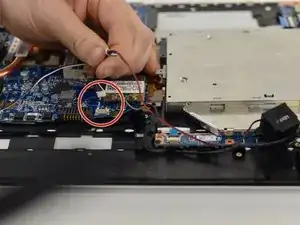

    • Follow wire down its wire channel and remove it from the channel.

    • Pull up on the connector to disconnect the speakers to the motherboard.

  20. OO1yhyWNCeMKNjJZ

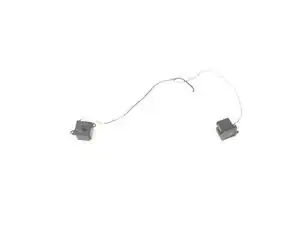

    • Remove speaker and wire from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
